This configuration consists of an Avaya G700 Media Gateway with an Avaya S8300 Media Server and up to nine adjunct G700s. Each G700 has a network region assignment, as do all IP endpoints. Media module endpoints have access to system resources only in the G700 housing them. IP endpoints have access to system resources in all connected network regions, on a first region preference basis. Connectivity is specified by the Inter Region Connectivity Matrix (IRCM), which is set in system administration. The number of G700s in a given Network Region will be determined by the number of media module ports required for that region and by traffic engineering the quantity of each system resource. The limit of 100 stations and 100 trunks applies to the entire system controlled by the S8300 Media Server.
In this configuration as well, the layer 2 switches may be Avaya P330s or equivalent devices from another manufacturer.

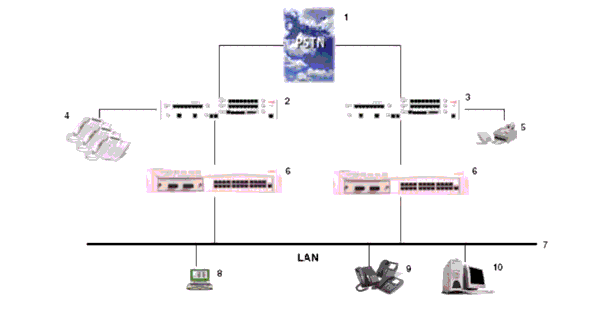

Figure 3. Avaya G700 Media Gateway with Avaya S8300 Media Server and Adjunct G700 Media Gateway
|
|
|
