Avaya G700 Media Gateway with LAN (small office configuration)

This configuration consists of a single G700 Media Gateway with an S8300 Media Server. The three remaining open slots are occupied by media modules. The configuration also makes use of the expansion slot for a variety of expansion modules for network connectivity through ATM OC3, Gigabit ethernet (1000BaseT wire, multimode or single mode fiber), or 16 port 10/100 Ethernet, etc. In this configuration, there is a limit of 450 stations and 450 trunks.

The layer 2 switch in this configuration may be an Avaya P330 or an equivalent device from another manufacturer.

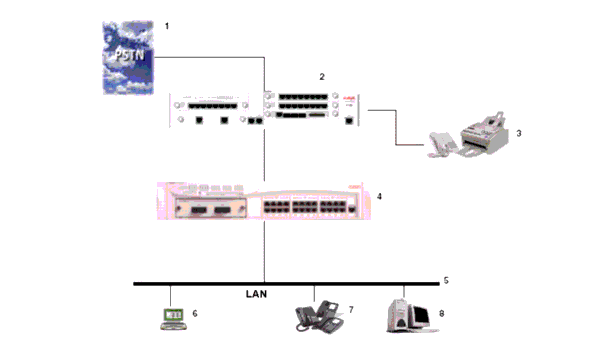

Figure 2. Avaya G700 Media Gateway with Avaya S8300 Media Server

1. Public Service Telephone Network
2. G700 Media Gateway with S8300 Media Server, Avaya MM711 Media Module, and Avaya MM710 Media Module
3. Analog devices
4. Layer 2 switch
5. Local Area Network
6. Administration PC
7. IP Phones (IP Telephones, IP Softphones, and IP Agents)
8. Network desktop PCs and IP softphones
