Install Circuit Packs������

Allowable Circuit Packs and Circuit Modules lists the circuit packs that can be used with the Avaya G600. Non-Allowable Circuit packs and Circuit Modules lists the circuit packs that cannot be used with the Avaya G600��.

Allowable Circuit Packs and Circuit Modules �
Apparatus code
Name
Allowable
650A
AC Power Unit
Yes
NAA1
Fiber Optic Cable Adapter Circuit Pack
Yes
TN429D
Analog Direct Inward/Outward Dialing (DIOD) Central Office Trunk
Yes
TN433
Speech Synthesizer (Italian)
Yes
TN457
Speech Synthesizer (British English)
Yes
TN459B
Direct Inward Dialing (DID) Trunk (United Kingdom)
Yes
TN464GP
DS1 Interface - T1, 24 Channel - E1, 32 Channel
Yes
TN465C
Central Office Trunk
Yes
TN479
Analog Line
Yes
TN556D
Integrated Services Digital Network -Basic Rate Interface 4-Wire S/T-NT Interface (ISDN-BRI)
Yes
TN725B
Speech Synthesizer (US English)
Yes
TN744E
Call Classifier - Detector
Yes
TN746B
Analog Line
Yes
TN747B
Central Office Trunk
Yes
TN753B
Direct Inward Dialing (DID)Trunk
Yes
TN754C
Digital Line 4-Wire DCP
Yes
TN760E
Tie Trunk
Yes
TN762B
Hybrid Line
Yes
TN763D
Auxiliary Trunk
Yes
TN767E
DS1 Interface - T1, 24 Channel
Yes
TN769
Analog Line
Yes
TN771DP
Maintenance/Test
Yes
TN789B
Radio Controller
Yes
TN791
Analog Line
Yes
TN793B
Analog Line, 24-Port, 2-Wire
Yes
TN797
Analog Trunk & Line
Yes
TN799DP
Control LAN (C-LAN)
Yes
TN801B
LAN Gateway/CallVisor PC
Yes
TN2140B
Tie Trunk - Hungary, Italy
Yes
TN2147C
Central Office Trunk
Yes
TN2181
Digital Line 2-Wire DCP
Yes
TN2183
Analog Line
Yes
TN2184
Direct Inward/Outward Dialing (DIOD) Trunk (Germany)
Yes
TN2185B
ISDN-BRI 4-Wire S/T-TE Interface (Trunk Side)
Yes
TN2198
ISDN-BRI Line/Trunk
Yes
TN2199
Central Office Trunk (Russia)
Yes
TN2207
DS1 Interface - (T1) 24 Channel and (E1) 32 Channel
Yes
TN2209
Tie Trunk, 4-Port, 4 Wire (Russia)
Yes
TN2214B
Digital Line, 24-Port, 2-Wire DCP, Category B only
Yes
TN2215
Analog Line
Yes
TN2224CP
Digital Line, 24-Port, 2-Wire DCP
Yes
TN2242
TTC Japanese 2-Mbit Trunk
Yes
TN2302AP
IP Media Processor
Yes
TN2305B/6B
ATM-CES Trunk, multimode/single-mode fiber
Yes
TN2312AP
IP Server Interface
Yes
TN2313AP
DS1 Interface (24 channel)
Yes
TN2464BP
DS1 Interface - T1, 24 Channel - E1, 32 Channel
Yes
TN2501AP
VAL Announcement
Yes
TN2793B
Analog Line
Yes
TN-CCSC-1
PRI to DASS Converter
Yes
TN-CCSC-2
PRI to DASS Converter
Yes
TN-C7
PRI to SS7 Converter
Yes
TN-CIN
Voice/FAX/Data Multiplexer
Yes

Non-Allowable Circuit packs and Circuit Modules �
Apparatus code
Name
Allowable
982LS
Current Limiter
No
CFY1B
Current Limiter
No
CPP1
Memory Expansion
No
ED-1E546
(TN566)
(TN567)
Intuity AUDIX R3 System
No
ED-1E546
(TN2208)
(TN2170)
CallVisor Adjunct-Switch Application Interface (ASAI) over the DEFINITY (LAN) Gateway R1
No
J58890M-1
(TN801)
CallVisor ASAI/Call Visor PC/LAN over the DEFINITY LAN Gateway Release 2.0
No
TN420C
Tone Detector
No
TN553
Packet Data
No
TN566/567
Multifunction circuit pack
No
TN568
Intuity AUDIX Slim
No
TN570C
Expansion Interface
No
TN572
Switch Node Clock
No
TN573B
Switch Node Interface
No
TN577
Packet Gateway
No
TN726B
Data Line
No
TN735
MET Line
No
TN748E
Tone Detector
No
TN750C
Announcement
No
TN755B
Neon Power Unit
No
TN756
Tone Detector/Generator
No
TN758
Modem Pool
No
TN765
Processor Interface
No
TN768
Tone-Clock
No
TN772
Duplication Interface
No
TN775C
Maintenance
No
TN776
Expansion Interface
No
TN777B
Network Control
No
TN778
Packet Control
No
TN780
Tone-Clock
No
TN787K
Multimedia Interface
No
TN788B
Multimedia Voice Conditioner
No
TN790B
Processor
No
TN792
Duplication Interface
No
TN794
Network Control/Packet Interface (NetPkt)
No
TN798B
Processor
No
TN1648B
System Access/Maintenance
No
TN1650B
Memory
No
TN1654
DS1 Converter - T1, 24 Channel/E1, 32 Channel
No
TN1655
Packet Interface
No
TN1656
Tape Drive
No
TN1657
Disk Drive
No
TN2182B
Tone-Clock - Tone Detector and Call Classifier
No
TN2202
50-Hz French Ring Generator
No
TN2208
AUDIX
No
TN2301
Survivable Remote Logic Switch
No
TN2308
Direct Inward Dialing Trunk
No
TN2401
Network Control/Packet Interface
No
TN2404
Processor
No

Circuit Pack Installation�����

CAUTION: When handling circuit packs or any components of an Avaya G600 Media Gateway, always wear an authorized wrist ground strap. Connect the strap to the ground connector provided on the media gateway.

Circuit Pack Slot Loading��
  1. Check the reinstalled circuit packs. All of the circuit pack slots in the Avaya G600 are "universal slots." Any slot can contain any type of port circuit pack except that the TN2312AP IP Server Interface circuit pack must be installed in slot 2 of media gateway�A. See Avaya G600 Media Gateway and slot numbering.
  2. Load all port circuit packs. See Circuit pack installation order (loading) for the recommended circuit pack layout.

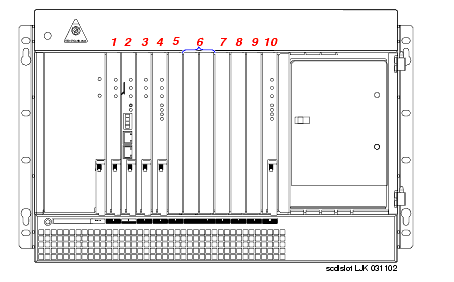

Avaya G600 Media Gateway and slot numbering������


Circuit pack installation order (loading)
Function
Apparatus code
Load from
Notes
IP Server Interface
TN2312AP
Slot 2
1 per port network
Call Classifier/Tone Detector
TN744E
Slot 3
Not required; the TN2312AP provides this functionality. May want for additional capacity.
Figer Cable Adapter Assembly
NAA1
Slot to left of slot 6
Required when G600 is equipped with TN2305B/6B
Control C-LAN
TN799DP
Left
start with slot 4
Announcement
TN2501
Any slot

LAN Gateway (MAP-D)
TN801B
Slot 7
3 slots are required. Place in slot 8 if using a NAA1.
IP Media Processor
TN2302AP
Right
start with slot 10
Speech Synthesizer
TN433, TN457, TN725B
Any slot

DS1 T1/E1,
ISDN PRI
TN464GP, TN767E, TN2207, TN2242, TN2313AP, TN2464BP
Left
Total number of DS1 and ISDN-PRI circuit packs must not exceed 400 per system.
ISDN-BRI Trunk
TN2185B, TN2198
Left
Maximum of 60 per system.
TTC Japanese 2-Mbit Trunk
TN2242
Left

ATM Interface Trunk
TN2305B/TN2306B
Left
Maximum of 2 ATM-CES trunks per media gateway; total of 88 per system.
CO Trunk
TN465C,TN747B, TN2147C,TN2199, TN2305B, TN2306B
Left

DID Trunk
TN459B, TN753B
Left

Tie Trunk
TN760E, TN2140B, TN2209
Left

Auxiliary Trunk
TN763
Left

Digital Line
TN754C, TN2181, TN2214B, TN2224CP
Left

Analog Line
TN429D, TN479, TN746B, TN769, TN791, TN793, TN2183, TN2215, TN2793
Left

Analog Trunk & Line
TN797
Left

Hybrid Line
TN762B
Right

Radio Controller
TN789B
Right

Call Classifier
TN744E
Right

ISDN-BRI 4-Wire S/T-NT Line (A-Law)
TN556D
Right
