In a typical configuration you connect to the network through a port on the back of the Avaya S8700 Media Server, using a standard CAT5 cable with RJ45 connectors on each end. Typically for an IP Connect configuration, you connect through port 1 (Eth0). (See CAT5 cable connected to a port on the back of the Avaya S8700 Media Server). For a Multi-Connect configuration, you connect through one of the available 4 ports on the network interface card (NIC), typically the one corresponding to Eth4.
The other end of the cable connects to an Ethernet switch (router), hub, or token ring.

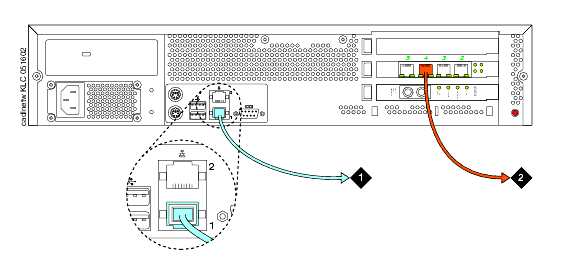

CAT5 cable connected to a port on the back of the Avaya S8700 Media Server
|
|
|
