Test the External Connection to the LAN���

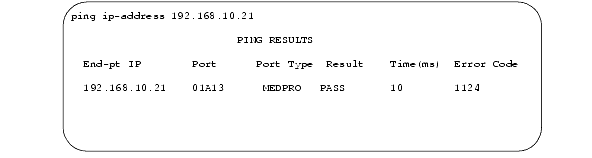

To test the external IP connections, ping the IP Media Processor server and ping a known computer connected to the network. If everything is configured correctly, the Result column on the Ping Results screen reads pass. If it reads abort, verify the IP address information and check the connectivity, including the cabling.

1. Type ping ip-address IPaddress board UUCSS and press Enter. The variable IPaddress is the IP address of the TN2302AP IP Media Processor and UUCSS is the cabinet, carrier, and slot of the TN2302AP IP Media Processor.

2. Type ping ip-address IPaddress board UUCSS and press Enter. The variable IPaddress is the IP address of the customer's gateway and UUCSS is the cabinet, carrier, and slot of the TN2302AP IP Media Processor.
3. Type ping ip-address IPaddress board UUCSS and press Enter. The variable IPaddress is the IP address of another computer beyond the gateway and UUCSS is the cabinet, carrier, and slot of the TN2302AP IP Media Processor.

The TN2302AP IP Media Processor is now installed in the media gateway and connected to the IP network.
