Administer the IP Media Processor��

Use Avaya Site Administration for the administration.

1. Log in as craft.
2. Type list configuration all and press Enter to verify that the MultiVantage software recognizes the TN2302AP circuit packs.

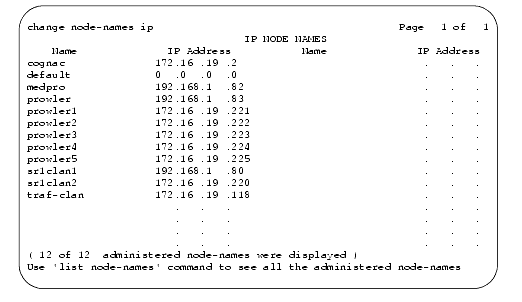

3. Type change node-names and press Enter.
4. On page 2, type in the node names and IP addresses for the TN2302AP.

5. Type display circuit-pack and press Enter. Verify that the TN2302AP shows up in the Code column.

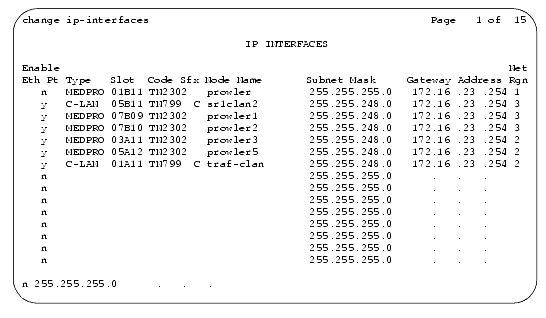

6. Type change ip-interfaces and press Enter.

.

NOTE: Enable the Ethernet port last, after you have filled in the information in the other fields.

• Set Slot field to UUCSS, where UUCSS is the cabinet, carrier, and slot.
• The Code and SFX fields are automatically populated with TN2302AP circuit packs.
• In the Node Name field type the same node name entered on the Node Name screen.
• In the Subnet Mask field use the default setting unless you are given a different subnet mask.
• In the Gateway Address field use the address you are given or leave blank.
• Set the Net Region field to 1 unless you are given a different number.
• Set the Enable Eth Pt field to y
7. Press Enter to save the information and effect the new settings.

Refer to the Administration for Network Connectivity for Avaya MultiVantage Software for more information on these administration steps and for the steps to administer IP Softphones and H.323 trunks.
