Test the External Connection to the LAN��

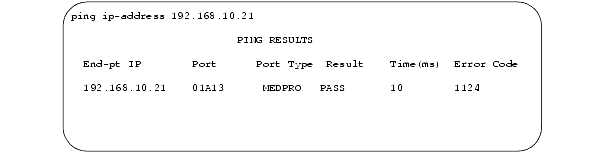

To test the external IP connections, ping the C-LAN and ping a known computer connected to the network. If everything is configured correctly, the Result column on the Ping Results screen reads pass. If it reads abort, verify the IP-address information and check the connectivity, including the cabling.
- Type ping ip-address nnn.nnn.nnn.nnn board UUCSS and press Enter. The variable nnn.nnn.nnn.nnn is the IP address of the TN799DP and UUCSS is the cabinet, carrier, and slot of the TN799DP C-LAN circuit pack.
- Type ping ip-address nnn.nnn.nnn.nnn board UUCSS and press Enter. The variable nnn.nnn.nnn.nnn is the IP address of the customer's gateway and UUCSS is the cabinet, carrier, and slot of the TN799DP C-LAN circuit pack.
- Type ping ip-address nnn.nnn.nnn.nnn board UUCSS and press Enter. The variable nnn.nnn.nnn.nnn is the IP address of another computer beyond the gateway and UUCSS is the cabinet, carrier, and slot of the TN799DP C-LAN circuit pack.
The TN799DP C-LAN circuit pack is now installed in the media gateway and connected to the IP network.
