Connection Overview
Review Physical Access Methods
Begin _____________________
- Check the Figure 16 for the location of the S8300 Services port.

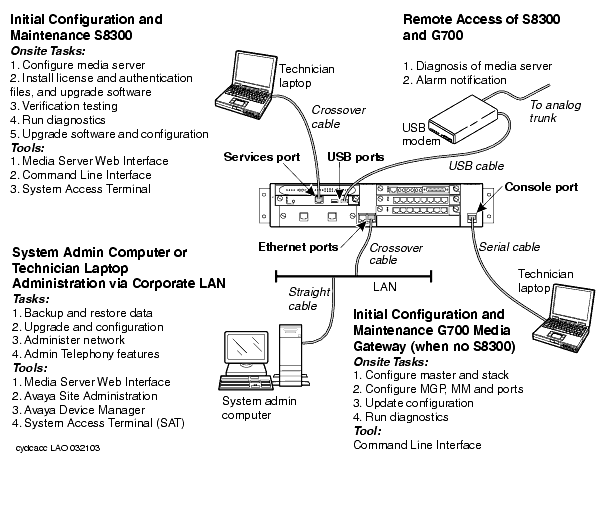

Figure 16. Summary of S8300 and G700 Access Methods and Tasks
- If you are providing maintenance for a G700 that does not have an internal S8300, check for the location of the ethernet ports (EXT 1 / EXT 2). You will need to connect the G700 to the customer's LAN via one of these ports.
End _______________________
