LED Panel Location on the G700

As shown in Figure 17, the LED panel is located on the top left corner of the G700. Directly below the LED panel is Media Module slot V1, which can be occupied by any type of Media Module. However, the S8300 Media Server can reside only in this particular slot because of height restrictions (for a specific discussion of the S8300 LEDs, please see S8300 Media Server LEDs.

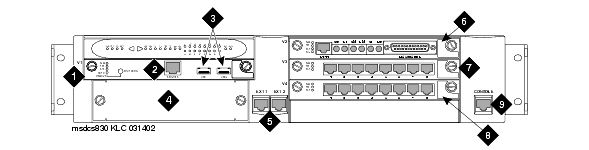

Figure 17. G700 LED Panel Location

1. Media Module Slot #1 (V1)

2. S8300 Services Port (Used with cross-over ethernet cable)

3. S8300 USB-Series Modem connection

4. Avaya Expansion Module Slot

5. 10/100 Base-T Ethernet Ports (Ext1, Ext2)

6. Media Module Slot #2 (V2)

7. Media Module Slot #3 (V3)

8. Media Module Slot #4 (V4)

9. Console Interface (Used with serial cable)

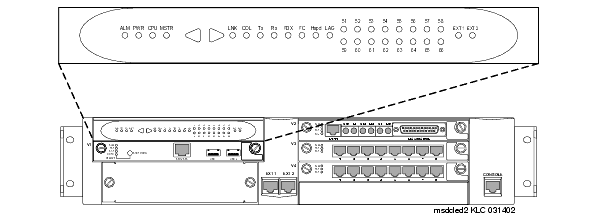

Figure 18 shows an expanded view of the G700 LED panel.

Figure 18. G700 LED Panel
