javax.telephony.callcontrol
Interface CallControlConnection

All Superinterfaces:
Connection
All Known Subinterfaces:
ITsapiConnection, LucentConnection, LucentV5Connection, LucentV6Connection

public interface CallControlConnection
extends Connection

Introduction

The CallControlConnection interface extends the core Connection interface and provides additional features and greater detail about the Connection state. Applications may query a Connection object using the instanceof operator to see whether it supports this interface.

CallControlConnection State

This interface defines states for the Connection which provide greater detail beyond the states defined in the Connection interface. The states defined by this interface are related to the states defined in the core package in certain, specific ways, as defined below. Applications may obtain the CallControlConnection state via the getCallControlState() method defined on this interface. This method returns one of the integer state constants defined in this interface.

Below is a description of each CallControlConnection state in real-world terms. These real-world descriptions only serve to provide a more intuitive understanding of what is going on. Several methods in this specification state pre-conditions based upon the CallControlConnection state. Some of these states are identical to those defined in the core package.

CallControlConnection.IDLE This state has the same definition as in the core package. It is the initial CallControlConnection state for all new Connections. Connections typically do not stay in this state for long, but quickly transition to another state.
CallControlConnection.OFFERED This state indicates than an incoming call is being offered to the Address associated with the Connection. Typically, applications must either accept or reject this offered call before the called party is alerted to the incoming telephone call.
CallControlConnection.QUEUED This state indicates that a Connection is queued at the particular Address associated with the Connection. For example, some telephony platforms permit the "queueing" of incoming telephone call to an Address when the Address is busy.
CallControlConnection.NETWORK_REACHED This state indicates that an outgoing telephone call has reached the network. Applications may not receive further events about this leg of the telephone call, depending upon the ability of the telephone network to provide additional progress information. Applications must decide whether to treat this as a connected telephone call.
CallControlConnection.NETWORK_ALERTING This state indicates that an outgoing telephone call is alerting at the destination end, which was previously only known to have reached the network. Typically, Connections transition into this state from the CallControlConnection.NETWORK_REACHED state. This state results from additional progress information being sent from the telephone network.
CallControlConnection.ALERTING This state has the same definition as in the core package. It implies that the Address is being notified of an incoming call.
CallControlConnection.INITIATED This state indicates the originating end of a telephone call has begun the process of placing a telephone call, but the dialing of the destination telephone address has not yet begun. Typically, a telephone associated with the Address has gone "off-hook".
CallControlConnection.DIALING This state indicates the originating end of a telephone call has begun the process of dialing a destination telephone address, but has not yet completed dialing.
CallControlConnection.ESTABLISHED This state is similar to that of Connection.CONNECTED. It indicates that the endpoint has reached its final, active state in the telephone call.
CallControlConnection.DISCONNECTED This state has the same definition as in the core package. It implies the Connection object is no longer part of the telephone call.
CallControlConnection.FAILED This state has the same definition as in the core package. It indicates that a particular leg of a telephone call has failed for some reason, perhaps because the party was busy.
CallControlConnection.UNKNOWN This state has the same definition as in the core package. It indicates the implementation is unable to determine the current call control package state of the Connection object. Typically, methods are invalid on this object when it is in this state.

State Transitions

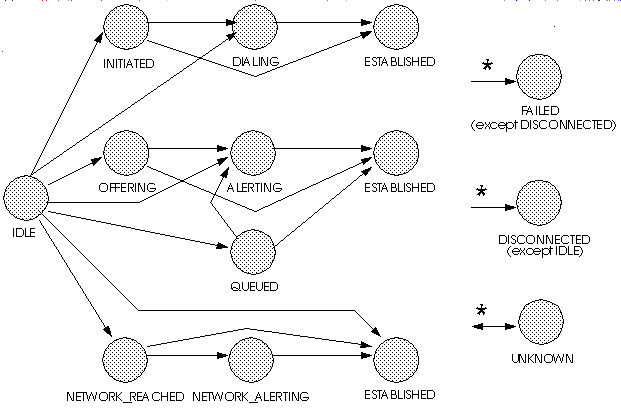

Similar to the Connection state transition diagram, the CallControlConnection state must transition according to rules illustrated in the finite state diagram below. An implementation must guarantee that CallControlConnection state must abide by this transition diagram.

Note there is a general left-to-right progression of the state transitions. The asterisk next to a state transition, as in the core package, implies a transition to/from another state, except where noted.

Core vs. CallControl Package States

There is a strong relationship between the CallControlConnection states and the Connection states. If an implementation supports the call control package, it must ensure this relationship is properly maintained.

Since the states defined in the CallControlConnection interface provide more detail to the states defined in the Connection interface, each state in the Connection interface corresponds to a state defined in the CallControlConnection interface. Conversely, each CallControlConnection state corresponds to exactly one Connection state. This arrangement permits applications to view either the core state or the call control state and still see a consistent view.

The following table outlines the relationship between the core package Connection states and the call control package Connection states.

If the call control package state is... then the core package state must be...
CallControlConnection.IDLE Connection.IDLE
CallControlConnection.QUEUED Connection.INPROGRESS
CallControlConnection.OFFERED Connection.INPROGRESS
CallControlConnection.ALERTING Connection.ALERTING
CallControlConnection.INITIATED Connection.CONNECTED
CallControlConnection.DIALING Connection.CONNECTED
CallControlConnection.NETWORK_REACHED Connection.CONNECTED
CallControlConnection.NETWORK_ALERTING Connection.CONNECTED
CallControlConnection.ESTABLISHED Connection.CONNECTED
CallControlConnection.DISCONNECTED Connection.DISCONNECTED
CallControlConnection.FAILED Connection.FAILED
CallControlConnection.UNKNOWN Connection.UNKNOWN

Observers and Events

All events pertaining to the CallControlConnection interface are reported via the CallObserver.callChangedEvent() method. The application observer object must also implement the CallControlCallObserver interface to express interest in the call control package events.

Observers which are registered on a Call receive events when the CallControlConnection state changes. Note that when the CallControlConnection state changes, it sometimes results in the Connection state changing (according to the table above). In these instances, both the proper call control and core package events are delivered to the observer.

The CallControlConnection state events defined in this package are: CallCtlConnOfferedEv, CallCtlConnQueuedEv, CallCtlConnAlertingEv, CallCtlConnInitiatedEv, CallCtlConnDialingEv, CallCtlConnNetworkReachedEv, CallCtlConnNetworkAlertingEv, CallCtlConnFailedEv, CallCtlConnEstablishedEv, CallCtlConnUnknownEv, and CallCtlConnDisconnectedEv.

See Also:
Connection, CallObserver, CallControlCallObserver, CallCtlCallEv, CallCtlConnEv, CallCtlConnAlertingEv, CallCtlConnDialingEv, CallCtlConnDisconnectedEv, CallCtlConnEstablishedEv, CallCtlConnFailedEv, CallCtlConnInitiatedEv, CallCtlConnNetworkAlertingEv, CallCtlConnNetworkReachedEv, CallCtlConnOfferedEv, CallCtlConnQueuedEv, CallCtlConnUnknownEv

Field Summary
static int ALERTING
          The CallControlConnection.ALERTING state has the same definition as in the core package.
static int DIALING
          The CallControlConnection.DIALING state indicates the originating end of a telephone call has begun the process of dialing a destination telephone address, but has not yet completed.
static int DISCONNECTED
          The CallControlConnection.DISCONNECTED state has the same definition as in the core package.
static int ESTABLISHED
          The CallControlConnection.ESTABLISHED state is similar to that of Connection.CONNECTED.
static int FAILED
          The CallControlConnection.FAILED state has the same definition as in the core package.
static int IDLE
          The CallControlConnection.IDLE state has the same definition as in the core package.
static int INITIATED
          The CallControlConnection.INITIATED state indicates the originating end of a telephone call has begun the process of placing a telephone call, but the dialing of the destination telephone address has not yet begun.
static int NETWORK_ALERTING
          The CallControlConnection.NETWORK_ALERTING state indicates that an outgoing telephone call is alerting at the destination end, which was previously only known to have reached the network.
static int NETWORK_REACHED
          The CallControlConnection.NETWORK_REACHED state indicates that an outgoing telephone call has reached the network.
static int OFFERED
          The CallControlConnection.OFFERED state indicates than an incoming call is being offered to the Address associated with the Connection.
static int OFFERING
          Deprecated. Since JTAPI v1.2.
static int QUEUED
          The CallControlConnection.QUEUED state indicates that a Connection is queued at the particular Address associated with the Connection.
static int UNKNOWN
          The CallControlConnection.UNKNOWN state has the same definition as in the core package.

Fields inherited from interface javax.telephony.Connection
CONNECTED, INPROGRESS

Method Summary
 void accept()
          Accepts a telephone call incoming to an Address.
 void addToAddress(java.lang.String additionalAddress)
          Appends additional address information onto an existing Connection.
 int getCallControlState()
          Returns the current call control state of the Connection.
 Connection park(java.lang.String destinationAddress)
          Parks a Connection at a destination telephone address.
 Connection redirect(java.lang.String destinationAddress)
          Redirects an incoming telephone call at an Address to another telephone address.
 void reject()
          Rejects a telephone call incoming to an Address.

Methods inherited from interface javax.telephony.Connection
disconnect, getAddress, getCall, getCapabilities, getConnectionCapabilities, getState, getTerminalConnections


Field Detail

IDLE

public static final int IDLE
The CallControlConnection.IDLE state has the same definition as in the core package. It is the initial CallControlConnection state for all new Connections. Connections typically do not stay in this state for long, quickly transitioning to another state.

See Also:
Constant Field Values

OFFERED

public static final int OFFERED
The CallControlConnection.OFFERED state indicates than an incoming call is being offered to the Address associated with the Connection. Typically, applications must either accept or reject this offered call before the called party is alerted to the incoming telephone call.

Since:
JTAPI v1.2
See Also:
Constant Field Values

QUEUED

public static final int QUEUED
The CallControlConnection.QUEUED state indicates that a Connection is queued at the particular Address associated with the Connection. A queued call is not active on a call. For example, some telephony platforms permit the "queueing" of incoming telephone call to an Address when the Address is busy.

See Also:
Constant Field Values

ALERTING

public static final int ALERTING
The CallControlConnection.ALERTING state has the same definition as in the core package. It means that the Address is being notified of an incoming call.

See Also:
Constant Field Values

INITIATED

public static final int INITIATED
The CallControlConnection.INITIATED state indicates the originating end of a telephone call has begun the process of placing a telephone call, but the dialing of the destination telephone address has not yet begun. Typically, a telephone associated with the Address has gone "off-hook".

See Also:
Constant Field Values

DIALING

public static final int DIALING
The CallControlConnection.DIALING state indicates the originating end of a telephone call has begun the process of dialing a destination telephone address, but has not yet completed.

See Also:
Constant Field Values

NETWORK_REACHED

public static final int NETWORK_REACHED
The CallControlConnection.NETWORK_REACHED state indicates that an outgoing telephone call has reached the network. Applications may not receive further events about this leg of the telephone call, depending upon the ability of the telephone network to provide additional progress information. Applications must decide whether to treat this as a connected telephone call.

See Also:
Constant Field Values

NETWORK_ALERTING

public static final int NETWORK_ALERTING
The CallControlConnection.NETWORK_ALERTING state indicates that an outgoing telephone call is alerting at the destination end, which was previously only known to have reached the network. Typically, Connections transition into this state from the CallControlConnection.NETWORK_REACHED state. This state results from additional progress information being sent from a telephone network that was capable of transmitting that information.

See Also:
Constant Field Values

ESTABLISHED

public static final int ESTABLISHED
The CallControlConnection.ESTABLISHED state is similar to that of Connection.CONNECTED. It indicates that the endpoint has reached its final, active state in the telephone call.

See Also:
Constant Field Values

DISCONNECTED

public static final int DISCONNECTED
The CallControlConnection.DISCONNECTED state has the same definition as in the core package. It indicates that the Connection object is no longer part of the telephone call.

See Also:
Constant Field Values

FAILED

public static final int FAILED
The CallControlConnection.FAILED state has the same definition as in the core package. It indicates that a Connection is no longer able to participate in a call. It is a final state in the life of a Connection. It indicates that a particular leg of a telephone call has failed for some reason, perhaps because the party was busy.

See Also:
Constant Field Values

UNKNOWN

public static final int UNKNOWN
The CallControlConnection.UNKNOWN state has the same definition as in the core package. It indicates that the state of the Connection is not known to its Provider. Typically, methods are invalid on this object when it is in this state.

See Also:
Constant Field Values

OFFERING

public static final int OFFERING
Deprecated. Since JTAPI v1.2.

The CallControlConnection.OFFERING state has been deprecated in JTAPI v1.2. It has the same meaning as the new CallControlConnection.OFFERED state. This constant has been replaced to be more tense-consistent with the event name.

See Also:
Constant Field Values
Method Detail

getCallControlState

public int getCallControlState()
Returns the current call control state of the Connection. The return value will be one of integer state constants defined above.

Returns:
The current call control state of the Connection.

accept

public void accept()
            throws InvalidStateException,
                   MethodNotSupportedException,
                   PrivilegeViolationException,
                   ResourceUnavailableException
Accepts a telephone call incoming to an Address. Telephone calls into an Address may first be offered to that address for acceptance before the standard notion of "alerting" takes place. This method is valid on a Connection in the CallControlConnection.OFFERED state. If successful, this method moves the Connection into the CallControlConnection.ALERTING state. This method waits until the telephone call has been accepted or an error occurs and an exception is thrown.

Pre-conditions:

  1. ((this.getCall()).getProvider()).getState() == Provider.IN_SERVICE
  2. this.getCallControlState() == CallControlConnection.OFFERED
Post-conditions:
  1. ((this.getCall()).getProvider()).getState() == Provider.IN_SERVICE
  2. this.getCallControlState() == CallControlConnection.ALERTING
  3. CallCtlConnAlertingEv/ConnAlertingEv is delivered for this Connection

Throws:
InvalidStateException - Either the Provider is not "in service" or the Connection is not "offered".
MethodNotSupportedException - This method is not supported by the implementation.
PrivilegeViolationException - The application does not have the proper authority to invoke this method.
ResourceUnavailableException - An internal resource necessary for the successful invocation of this method is not available.
See Also:
ConnAlertingEv, CallCtlConnAlertingEv

reject

public void reject()
            throws InvalidStateException,
                   MethodNotSupportedException,
                   PrivilegeViolationException,
                   ResourceUnavailableException
Rejects a telephone call incoming to an Address. Telephone calls into an Address may first be offered to that address for acceptance before the standard notion of "alerting" takes place. This method is valid on a Connection in the CallControlConnection.OFFERED state. If successful, this method moves the Connection into the CallControlConnection.DISCONNECTED state. This method waits until the telephone call has been rejected or an error occurs and an exception is thrown.

Pre-conditions:

  1. ((this.getCall()).getProvider()).getState() == Provider.IN_SERVICE
  2. this.getCallControlState() == CallControlConnection.OFFERED
Post-conditions:
  1. ((this.getCall()).getProvider()).getState() == Provider.IN_SERVICE
  2. this.getCallControlState() == CallControlConnection.DISCONNECTED
  3. CallCtlConnDisconnectedEv/ConnDisconnectedEv is delivered for this Connection

Throws:
InvalidStateException - Either the Provider is not "in service" or the Connection is not "offered".
MethodNotSupportedException - This method is not supported by the implementation.
PrivilegeViolationException - The application does not have the proper authority to invoke this method.
ResourceUnavailableException - An internal resource necessary for the successful invocation of this method is not available.
See Also:
ConnDisconnectedEv, CallCtlConnDisconnectedEv

redirect

public Connection redirect(java.lang.String destinationAddress)
                    throws InvalidStateException,
                           InvalidPartyException,
                           MethodNotSupportedException,
                           PrivilegeViolationException,
                           ResourceUnavailableException
Redirects an incoming telephone call at an Address to another telephone address. This method is very similar to the transfer feature, however, applications may invoke this method before first answering the telephone call. This method redirects the telephone call to another telephone address string provided as the argument to this method. This telephone address string must be valid and complete.

This Connection must either be in the CallControlConnection.OFFERED state or the CallControlConnection.ALERTING state. If successful, this method moves the Connection to the CallControlConnection.DISCONNECTED state. Additionally, any TerminalConnections associated with this Connection will move to the CallControlTerminalConnection.DROPPED state.

A new Connection is created and returned corresponding to the new destination leg of the telephone call. Note that this Connection may be null in the case the Call has been redirected outside of the Provider's domain and can no longer be tracked. The new Connection (if not null) must at least be in the CallControlConnection.IDLE state. The Connection may progress beyond this state before this method returns, which should be reflected by the proper events. This Connection behaves similarly to the destination Connection as described in Call.connect() and undergoes similar possible state change scenarios.

Pre-conditions:

  1. ((this.getCall()).getProvider()).getState() == Provider.IN_SERVICE
  2. this.getCallControlState() == CallControlConnection.OFFERED or CallControlConnection.ALERTING
  3. destinationAddress must be a valid and complete telephone address
Post-conditions:
  1. Let newconnection be the new Connection created and returned
  2. ((this.getCall()).getProvider()).getState() == Provider.IN_SERVICE
  3. this.getCallControlState() == CallControlConnection.DISCONNECTED
  4. newconnection element of (this.getCall()).getConnections()
  5. newconnection.getCallControlState() at least CallControlConnection.IDLE
  6. Let tc[] = this.getTerminalConnections() before this method is invoked
  7. tc[i].getCallControlState() == CallControlTerminalConnection.DROPPED, for all i.
  8. CallCtlConnDisconnected/ConnDisconnectedEv is delivered for this Connection
  9. CallCtlTermConnDroppedEv/TermConnDroppedEv is delivered for all tc[i]
  10. ConnCreatedEv is delivered for newconnection

Parameters:
destinationAddress - The Connection is redirected to this telephone address
Returns:
The Connection associated with the new leg of the Call.
Throws:
InvalidStateException - Either the Provider is not "in service" or the Connection is not "offered" or "alerting".
InvalidPartyException - The destination address to which this call is redirected is not valid and/or complete.
MethodNotSupportedException - This method is not supported by the implementation.
PrivilegeViolationException - The application does not have the proper authority to invoke this method.
ResourceUnavailableException - An internal resource necessary for the successful invocation of this method is not available.
See Also:
ConnCreatedEv, ConnDisconnectedEv, TermConnDroppedEv, CallCtlConnDisconnectedEv, CallCtlTermConnDroppedEv

addToAddress

public void addToAddress(java.lang.String additionalAddress)
                  throws InvalidStateException,
                         MethodNotSupportedException,
                         PrivilegeViolationException,
                         ResourceUnavailableException
Appends additional address information onto an existing Connection. This method is used when part of a telephone address string has been dialed and additional addressing information is needed in order to complete the dialing process and place the telephone call. The additional addressing information is provided as the argument to this method.

This Connection must either be in the CallControlConnection.DIALING state or the CallControlConnection.INITIATED state. If successful, this moves the Connection into one of two states. If the information provided completes the addressing information, as determined by the telephony platform, the Connection moves into the CallControlConnection.ESTABLISHED state and the telephone call is placed. If additional addressing information is still required, the Connection moves into the CallControlConnection.DIALING state if not already there.

Pre-conditions:

  1. ((this.getCall()).getProvider()).getState() == Provider.IN_SERVICE
  2. this.getCallControlState() == CallControlConnection.DIALING or CallControlConnection.INITIATED
Post-conditions Outcome 1: The addressing information is complete.
  1. ((this.getCall()).getProvider()).getState() == Provider.IN_SERVICE
  2. this.getCallControlState() == CallControlConnection.ESTABLISHED
  3. CallCtlConnEstablishedEv is delivered for this Connection
Post-conditions Outcome 2: The addressing information is not complete.
  1. ((this.getCall()).getProvider()).getState() == Provider.IN_SERVICE
  2. this.getCallControlState() == CallControlConnection.DIALING
  3. CallCtlConnDialingEv is delivered for this Connection

Parameters:
additionalAddress - The additional addressing information.
Throws:
InvalidStateException - Either the Provider is not "in service" or the Connection is not "initiated" or "dialing".
MethodNotSupportedException - This method is not supported by the implementation.
PrivilegeViolationException - The application does not have the proper authority to invoke this method.
ResourceUnavailableException - An internal resource necessary for the successful invocation of this method is not available.
See Also:
CallCtlConnDialingEv, CallCtlConnEstablishedEv

park

public Connection park(java.lang.String destinationAddress)
                throws InvalidStateException,
                       MethodNotSupportedException,
                       PrivilegeViolationException,
                       InvalidPartyException,
                       ResourceUnavailableException
Parks a Connection at a destination telephone address. This method is similar to the transfer feature, except the Connection at the new destination Address is in a special queued state. Parking a Connection at a destination Address drops the Connection from the Call and creates and returns a new Connection at the specified destination address in the CallControlConnection.QUEUED state.

The new destination telephone address string is given as an argument to this method and must be a valid and complete telephone address. The CallControlTerminal.pickup() method permits applications to "unpark" the new Connection.

The Connection must be in the CallControlConnection.ESTABLISHED state. If this method is successful, this Connection moves to the CallControlConnection.DISCONNECTED state. All of its associated TerminalConnections move to the CallControlTerminalConnection.DROPPED state.

Pre-conditions:

  1. ((this.getCall()).getProvider()).getState() == Provider.IN_SERVICE
  2. this.getCallControlState() == CallControlConnection.ESTABLISHED
  3. destinationAddress must be a valid and complete telephone address.
Post-conditions:
  1. Let newconnection be the new Connection created and returned
  2. ((this.getCall()).getProvider()).getState() == Provider.IN_SERVICE
  3. newconnection element of (this.getCall()).getConnections()
  4. newconnection.getCallControlState() == CallControlConnection.QUEUED
  5. this.getCallControlState() == CallControlConnection.DISCONNECTED
  6. Let tc[] = this.getTerminalConnections() before this method is invoked
  7. tc[i].getCallControlState() == CallControlTerminalConnection.DROPPED, for all i
  8. ConnCreatedEv is delivered for newconnection
  9. CallCtlConnQueuedEv/ConnInProgressEv is delivered for newconnection
  10. CallCtlConnDisconnected/ConnDisconnectedEv is delivered for this Connection
  11. CallCtlTermConnDroppedEv/TermConnDroppedEv is delivered for all tc[i]

Parameters:
destinationAddress - The telephone address string at which this connection is to be parked.
Returns:
The new Connection which is parked at the new destination Address.
Throws:
InvalidStateException - Either the Provider was not "in service" or the Connection was not "established".
MethodNotSupportedException - This method is not supported by the implementation.
InvalidPartyException - The party to which to party the Connection is invalid.
PrivilegeViolationException - The application does not have the proper authority to invoke this method.
ResourceUnavailableException - An internal resource necessary for the successful invocation of this method is not available.
See Also:
ConnCreatedEv, ConnInProgressEv, ConnDisconnectedEv, TermConnDroppedEv, CallCtlConnQueuedEv, CallCtlConnDisconnectedEv, CallCtlTermConnDroppedEv


Copyright © 2005 Avaya All Rights Reserved.
