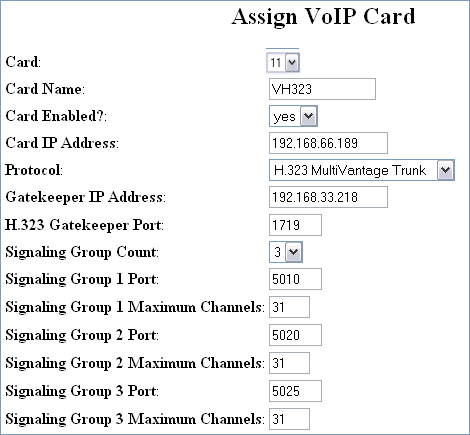

In this example, the maximum number of VoIP channels is used, and they are spread equally across three signaling groups. Configuration for the H.323 trunk on the IR system is shown in the following screen capture. The number of RTUs in this configuration is 93.
On the switch, three matching signaling groups have 31 ports each.
