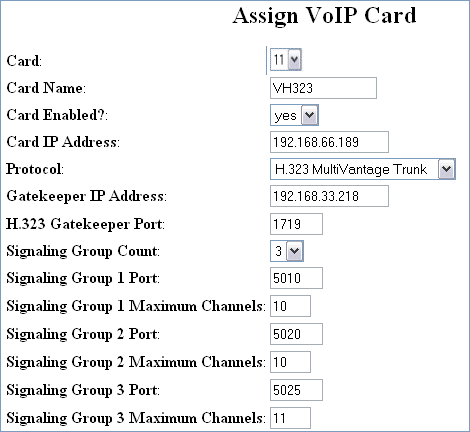

In this example, 31 VoIP channels are used, and they are spread unequally across three signaling groups. Configuration for the H.323 trunk on the IR system is shown in the following screen capture. The number of RTUs for this configuration is 31.
On the switch, three matching signaling groups are configured. Two have ten ports each and the third has eleven ports.
