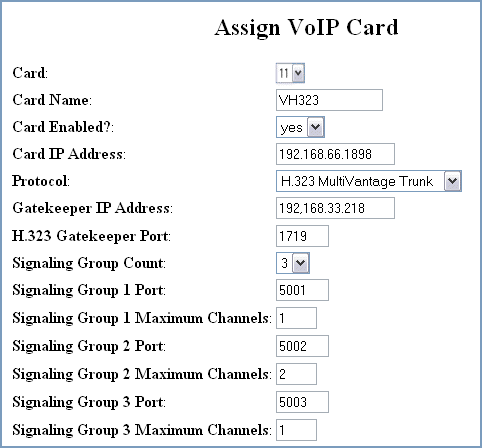

In this example, four VoIP channels are used, and they are assigned to three signaling groups. Configuration for the H.323 trunk on the IR system is shown in the following screen capture. The number of RTUs for this configuration is four.
On the switch, three matching signaling groups have one port, two ports, and one port. This port configuration corresponds to the system IR configuration.
