Issue 3, December 2001



Add IP Solutions

Install the Circuit Pack

Return to Task List


Note: The TN802B IP Interface is hot-swappable, so you do not need to power down the carrier to install it.

If you need to remove the TN802B IP Interface from the carrier at a later time, shut down Windows NT first by pressing the recessed reset button on the faceplate (see TN802B IP Interface faceplate) of the TN802B IP Interface until the LCD shows a flashing MSHUT *. When the flashing stops and the asterisk disappears (about 2 min), it is safe to remove the circuit pack.

  1. Insert the TN802B IP Interface into the rightmost of the three slots you reserved for it (see J58890MA-1 L30 IP Interface Assembly).


Note: To properly seat the circuit pack, push firmly on the front of the faceplate until the latch reaches the bottom rail of the carrier. Then close the latch until it is fully engaged.

When you plug in the TN802B IP Interface, the circuit pack starts to boot and the LCD reads PC Boot then after about 3 to 4 minutes it changes to IP TRK *, the default mode.

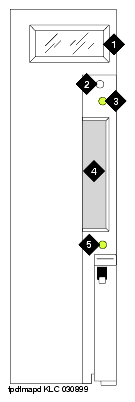

TN802B IP Interface faceplate

Figure Notes:
      1. LCD display

      2. Reset button (recessed)

      3. Red board status LED

      4. PCMCIA card slot

      5. Yellow PCMCIA disk-in-use LED

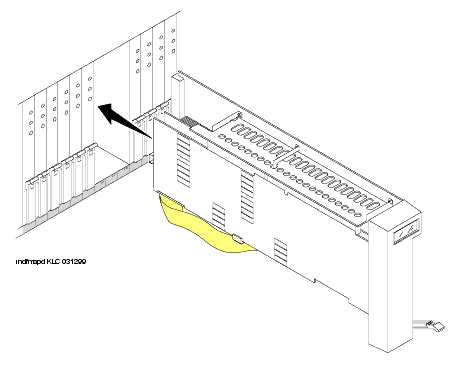

J58890MA-1 L30 IP Interface Assembly
