Bring the System Online

Set Country Options

Return to Task List

Certain country options need to be set to turn red failure indication LEDs off. Refer to Country Codes for a list of country codes.

  1. Type change system-parameters country options and press Enter.

    2. A screen similar to Typical System Parameters Country-Options Screen is displayed. The cursor is set on the Companding Mode line.

  2. If the country uses A-Law companding, type A-Law and press Enter.

    3. The default companding mode is mu-Law.

    Other items eventually need to be entered on this screen, but this is all that must be done to turn the red alarm LEDs off.

  3. If all red LEDs do not go off, reseat (unplug and reinsert) any port circuit packs displaying red LEDs.


Caution! To avoid a disk crash, never reseat the DEFINITY AUDIX System without first shutting it down. Shut down the DEFINITY AUDIX System (and allow the disk to completely spin down) before unplugging the assembly. See DEFINITY AUDIX System Power Procedures for the proper procedures.

  1. If the red LEDs still do not go off, refer to DEFINITY Enterprise Communications Server Maintenance for R10si or DEFINITY Enterprise Communications Server Maintenance for R10r.


Note: Ignore the red alarm indication LED on the TN767 or TN464/2464 DS1 circuit pack until after the DS1 circuit pack is administered. Alarms will appear in the Alarm Log when power is applied to the system before all equipment connecting to port circuit packs is installed. Normally, some alarms will be logged when power is applied to the system, but should be resolved quickly. If no equipment is connected to the port circuit packs, alarms associated with these ports can take up to four hours to log, but will clear automatically after all equipment is installed and operating correctly.

Country Codes
Country
Code
Country
Code

USA

1

France

12

Australia

2

Germany

13

Japan

3

Czechoslovakia

14

Italy

4

Russia

15

Netherlands

5

Argentina

16

Singapore

6

Greece

17

Mexico

7

China

18

Belgium

8

Hong Kong

19

Saudi Arabia

9

Thailand

20

United Kingdom

10

Macedonia

21

Spain

11

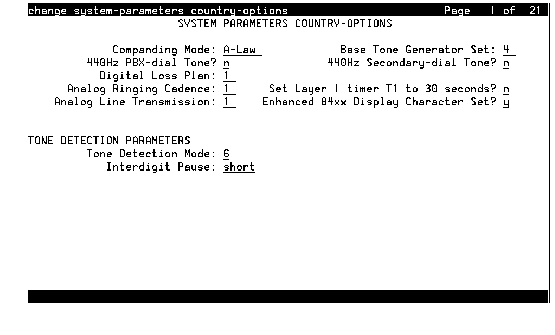

Typical System Parameters Country-Options Screen

Return to Task List
