Connecting and Handling Fiber Optic Cables
Optical Cross-Connect Hardware
Optical cross-connects consist of Lightguide Interconnect Units (LIUs) with lightguide troughs in between them. Typical Optical Lightguide Interconnect Unit shows a typical LIU. One LIU terminates the incoming cables and the other terminates the outgoing cables. A fiber optic patch cord or jumper is used to connect the circuits. Circuits can be rerouted the same as on 110-type connecting blocks, by moving the patch cord from one point on the Main Distribution Frame (MDF) to another.
Optical interconnects consist of Lightguide Interconnect Units (LIUs) without a trough between them. Typical Optical Interconnect Field shows a typical Interconnect field. Incoming and outgoing multi-mode and single-mode cables are connected directly to each other. This arrangement makes circuit changes more difficult, but reduces optical losses.
Task List: Optical Cross-connect and Interconnect Hardware Descriptions
- 100A Lightguide Interconnect Unit
- 10A Lightguide Connector Panel and Couplings:
C2000A-2 Connector Coupling (Multi-Mode) or
C3000A-2 Connector Coupling (Single-Mode) - Lightguide Troughs (1A4 Lightguide Trough and 1A6 Lightguide Trough)
- Fiber Interconnection Cable (Multi-Mode or Single-Mode Fiber Interconnect Cable)
- Labels for Fiber Optic Cables

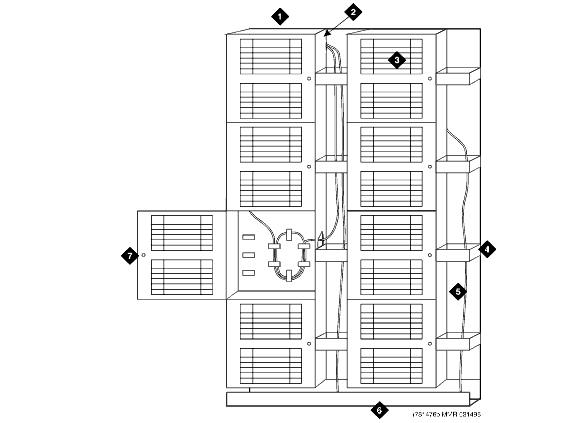

Typical Optical Lightguide Interconnect Unit
Figure Notes:

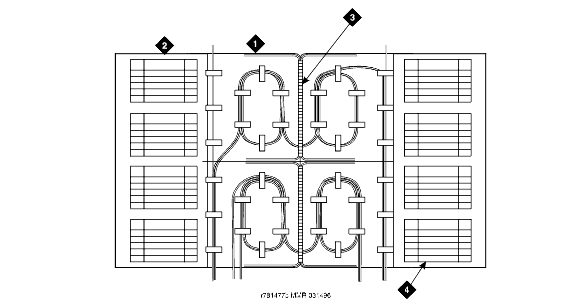

Typical Optical Interconnect Field
Figure Notes:
|
|
|
|
|
|
|
|
|
|
