Issue 3, December 2001



Install Fiber Optic Cable Pass-Thru Kit (Multicarrier Cabinets)

Prepare the cabinet

  1. Verify the equipment received.

    2. See Fiber pass-thru kit equipment. Actual equipment may vary in appearance and may ship in separate packages.

  2. Open the front door.


Note: Administration may be required before removing the circuit pack in the following step.

  1. Determine which slot (1 or 2) will contain the new fiber optic circuit pack. Remove the circuit pack or the blanking plate from this slot.


Note: If a circuit pack is removed from the required slot, it must be installed into a different slot in the cabinet. All translations associated with this circuit pack must also be moved.

  1. Remove the circuit pack or the blanking plate from the slot next to the slot determined in step 3. Two consecutive open slots are required to install the fiber optic adapter.


Note: If a circuit pack was removed in step 4, it will be replaced into the same slot in the next procedure.

  1. Install the new circuit pack.

  2. Open the rear door.

  3. From the rear, remove the I/O cable connector plate associated with the slot that will contain the new fiber optic circuit pack. See Remove the I/O cable connector.

  4. Using a supplied cable tie, secure the removed I/O connector to nearby cabling. See Secure the I/O cable connector.

  5. From the front, remove the fan cover. See Remove the fan cover.

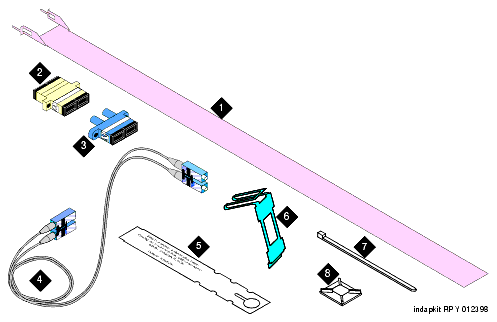

Fiber pass-thru kit equipment

Figure Notes:
      1. Pass-thru Tool

      2. SC-SC Fiber Optic Adapter

      3. ST-SC Fiber Optic Adapter

      4. Fiber Optic Cable (Multimode or Single-mode)

      5. Fiber Optic Cable Disconnect Label

      6. I/O Connector Adapter Bracket

      7. Cable Tie

      8. Cable Tie Mount

Fiber Pass-Thru Kit Equipment list

List of Fiber Pass-Thru Kit Equipment
Quantity
Description
1
Pass-thru Tool
1
Beige SC-SC Fiber Optic Adapter (multimode)
1
Beige ST-SC Fiber Optic Adapter (multimode)
1
Ten-foot (3 m) Fiber Optic Cable (multimode)
1
Beige SC-SC Fiber Optic Adapter (single-mode)
1
Beige ST-SC Fiber Optic Adapter (single-mode)
1
10-ft (3 m) Fiber Optic Cable (single-mode)
1
I/O Connector Adapter Bracket
1
Fiber Optic Cable Disconnect Label
10
Cable Ties
6
Cable Tie Mounts

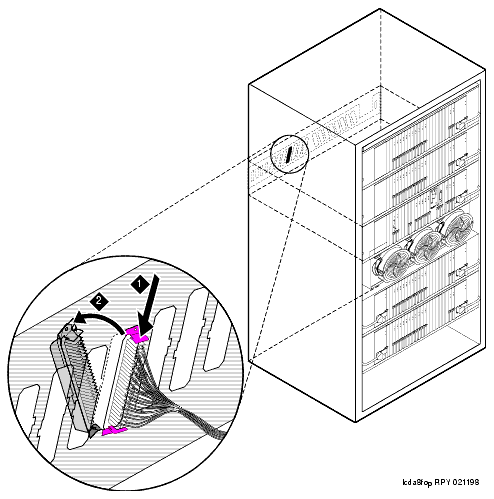

Remove the I/O cable connector

Figure Notes:
      1. Press tab down.

      2. Pull connector forward.

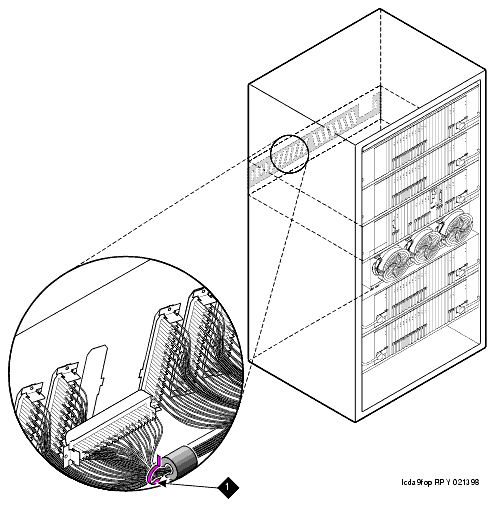

Secure the I/O cable connector

Figure Notes:
      1. Press tab down.

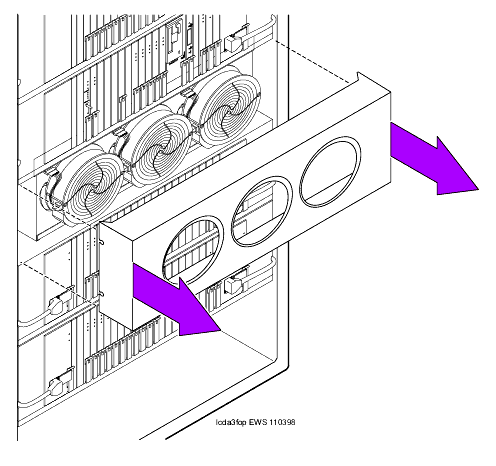

Remove the fan cover
