Install and Connect Multi-Carrier Cabinets

Connect Shorting Cable to J58890CE-2

Return to Task List


Caution! For a cabinet with a battery charger, read the caution label on the 397C battery charger before disconnecting batteries.

Some cabinets contain a J58890CE-2 AC Power Distribution Unit without an optional battery charger. Install the shorting cable only when a battery charger is not installed. If you do not install the shorting cable or a battery charger, then an alarm appears.

  1. Set the circuit breakers on the power distribution unit OFF. See Shorting Cable Installation.

  2. At the rear of the cabinet, insert the shorting cable (H600-442-G1) into J11. The cable is keyed so it can fit only 1 way.

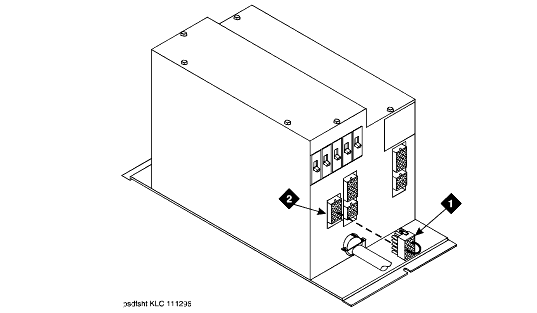

Shorting Cable Installation

Figure Notes:
      1. Shorting Cable (H600-442-G1) (If Battery Charger is Not Installed)

      2. J11

Return to Task List
