DEFINITY Made Easy Tools
Issue 3, December 2001



Install and Connect Multi-Carrier Cabinets

Connect External Alarm Cable

Return to Task List

  1. Plug the external alarm cable into the connector shown in External Alarm Cable Connection.

  2. Route the opposite end of the cable to the MDF. The alarm cable is connected to the MDF later.

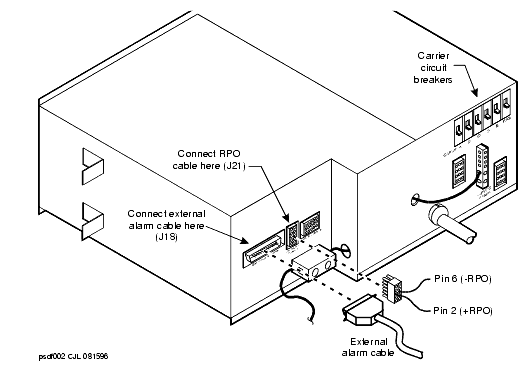

External Alarm Cable Connection
