Install and Connect Multi-Carrier Cabinets

Verify Fiber Optic Duplication Interface Cabling (TN792 port networks)

Return to Task List

If the fiber optic duplicate interface cabling is not already installed, interconnect the A and B port networks (TN792) with the 14-in. fiber optic cable (see Fiber optic cable connecting the two duplication interface circuit packs).

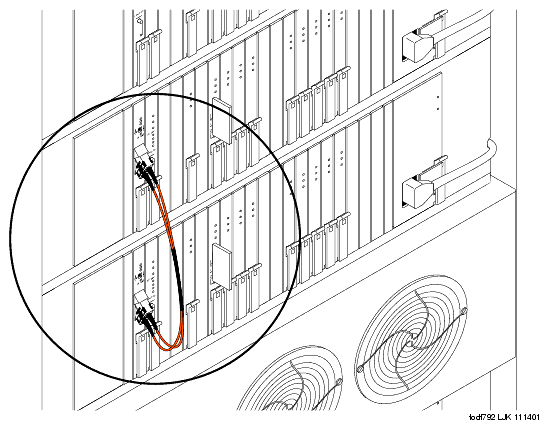

Fiber optic cable connecting the two duplication interface circuit packs

Figure Notes:
      1. AHF110 TDM Bus Terminator (Slot 17)

      2. TDM/Local Area Network (TDM/LAN) Pinfield (Slot 00)

      3. TDM Bus Cable WP-91716 L3

      4. Port Cabinet (Standard Reliability)

      5. Control Cabinet A Position

      6. AHF110 TDM Bus Terminator (Slot 03)

      7. Slot 18

Return to Task List
