DEFINITY Made Easy Tools
Issue 3, December 2001



Install and Connect Modems

Connect Modem to Telephone Network

Return to Task List

Cross-connect the network jack on the modem to the network interface (via a 103A or modular wall jack). See Pinout of Network Jack and Network Jack on U.S. Robotics Modem.

Pinout of Network Jack
Pin Number
Signal

1

Unused

2

Tip

3

Ring

4

Unused

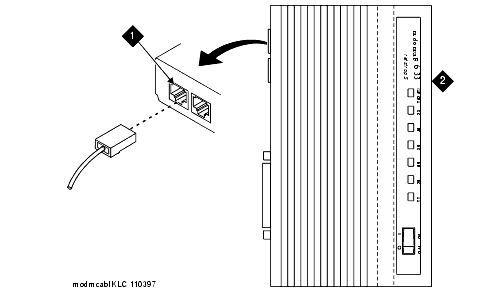

Network Jack on U.S. Robotics Modem

Figure Notes:
      1. Pin 1 of network jack

      2. Modem

Return to Task List
