DEFINITY Made Easy Tools
Issue 3, December 2001
Install and Administer Trunks
Adding Tie Trunks
Each tie trunk connects to 1 port of a 4-port TN760 or to an assortment of non-US tie trunk circuit packs.
- Install a TN760 or a non-United States tie trunk circuit pack in the assigned carrier slot (if an additional circuit pack is required).
- For customer-owned (not leased) tie-trunk facilities (such as campus environments), TN760 circuit packs provide signaling capabilities beyond those specified by the industry-wide E & M standard. Use Tie Trunk Circuit Packs (Component Side) and Tie Trunk Option Switch Settings and Administration to choose the preferred signaling format, set switches on the TN760 circuit pack, and administer the port.
- Administer forms listed under Tie Trunk Group in DEFINITY Enterprise Communications Server Administrator's Guide.

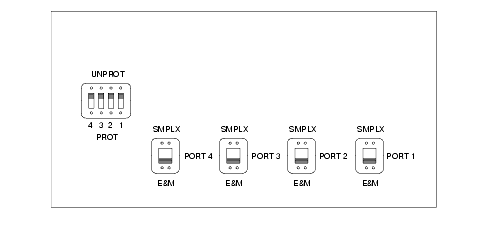

Tie Trunk Circuit Packs (Component Side)
