Test the System
TestTime Division Multiplexing Bus for Each Expansion Port Network
Check each TDM bus for each Expansion Port Network (EPN) in the system.
- Type test tdm port-network 2 and press Enter.
- Verify a test results screen similar to Sample Test Results for TDM Bus Port Network 2 is displayed.
- If result is FAIL for any test, check the connectors of the TDM bus cables in Processor Port Network (PPN) 2.
- Repeat these steps for each Expansion Port Network (EPN) to check the TDM bus cables.

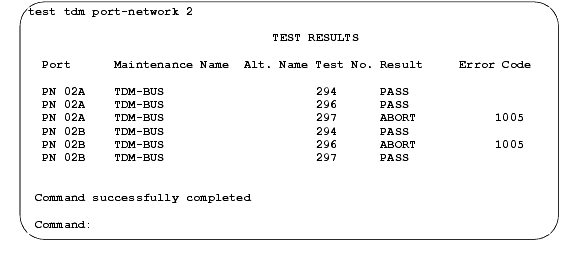

Sample Test Results for TDM Bus Port Network 2
|
|
|
|
|
|
|
|
|
|
