Issue 3, December 2001



Test the System

Test Duplicated Switch Processing Element Interchange (if duplicated)

Return to Task List

  1. If Multi-Carrier Cabinet, type status system cabinet number <1-44> and press Enter.
    or
    If Single-Carrier Cabinet, type status system all-cabinets and press Enter.

  2. Verify the screen displays test results similar to Example System Status Report for All Cabinets.

  3. Note the MODE of SPE 1A and 1B.

  4. Type refresh spe and press Enter.

    5. The sytem will display Command successfully completed.

  5. Type reset system interchange and press Enter. This causes the terminal to log off.

  6. Log in as craft again.


Note: If you have a dadmin login and password, you can use them instead of craft and the craft password.

  1. Note the MODE for SPE 1A and 1B should have changed from that noted in Step 3.

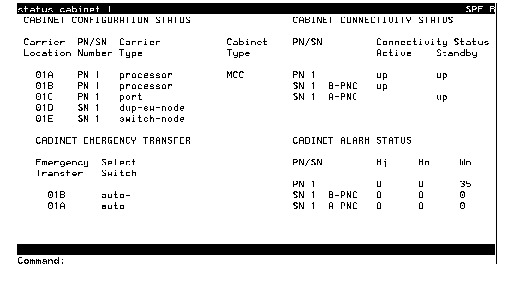

Example System Status Report for All Cabinets

Return to Task List
