Install Translation Flash Memory Card (Release 8si)
Return to Task List
- Verify the write switch on the Translation Flash-Memory Card (Translation Card) is positioned down so the card can be written to. See Write Switch on Translation Card.
- Insert the Translation Card into the TN794 Network Control/Packet Interface (Net/Pkt) circuit pack in the direction indicated by the arrow on the label.

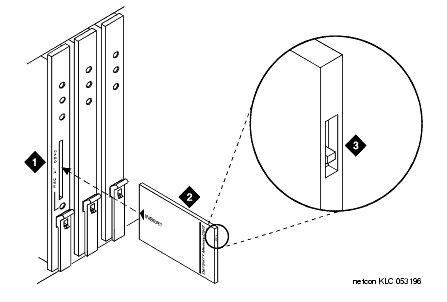

Write Switch on Translation Card
Figure Notes
-
Slot in TN794 Network Control/Packet Control Circuit Pack
-
Insert Card in Direction of Arrow
-
Write Switch Positioned Down
