DEFINITY Made Easy Tools
Issue 2, November 2000
Install and Connect Multi-Carrier Cabinets
Connect Mixed AC/DC Power and Ground

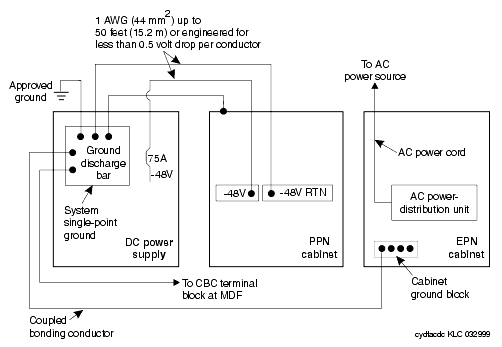

Typical Power and Ground for a Mixed AC/DC-Powered Cabinet shows a power and ground layout for a mixed AC/DC-powered cabinet configuration in the same equipment room with the PPN being DC powered and the EPN being AC powered. If a second EPN is part of the system, use the same basic connections.
Typical Power and Ground for a Mixed AC/DC-Powered Cabinet
|
|
|
|
|
|
|
|
|
|
