DEFINITY Made Easy Tools
Issue 2, November 2000



Install and Connect Multi-Carrier Cabinets

Connect External Alarm Cable

Return to Task List

  1. Plug the external alarm cable into the connector shown in Remote Power Off Cable Connections -- Part 1.

  2. Route the opposite end of the cable to the MDF. The alarm cable is connected to the MDF later.

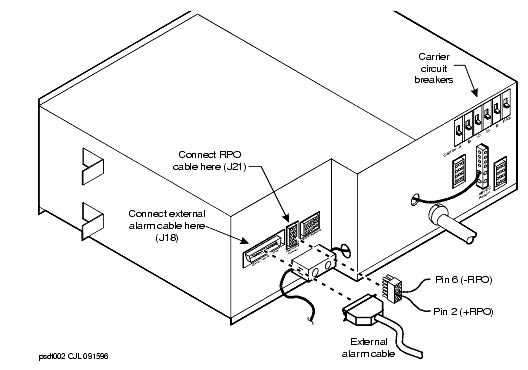

Remote Power Off Cable Connections -- Part 1
