Test the System

Test Expansion Interface Exchange for Each Expansion Port Network

Return to Task List

If the system is critical reliability, test the expansion interface exchange for each Expansion Port Network (EPN).

  1. If Multi-Carrier Cabinet, type status system cabinet number <1-44> and press Enter.
    or
    If Single-Carrier Cabinet, type status system all-cabinets and press Enter.

    2. This displays the standby expansion link. See Sample of System Status before Expansion Link is Set.

  2. Type set expansion-link UUCSS where UUCSS is one of the cabinet, carrier, and port locations of the standby expansion link.

  3. Verify the bottom of the screen displays:

    4. Command successfully completed

    Command:

  4. If Multi-Carrier Cabinet, type status system cabinet number <1-44> and press Enter.
    or
    If Single-Carrier Cabinet, type status system all-cabinets and press Enter.

    5. A screen similar to Sample of System Status after Expansion Link is Set is displayed.

  5. Verify the MODEs of the expansion links have changed.

  6. If any problems are indicated, check the TDM cables and the inter-cabinet cables (ICC) in the associated Expansion Port Network (EPN).

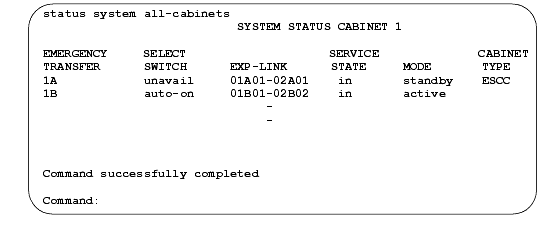

Sample of System Status before Expansion Link is Set

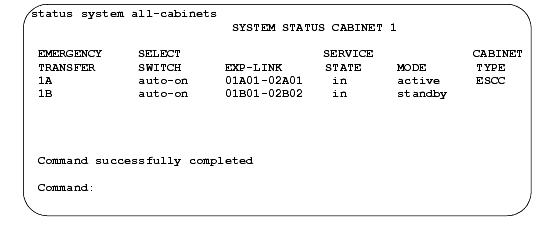

Sample of System Status after Expansion Link is Set

Return to Task List
