Install Fiber Optic Cable Pass-Thru Kit (Single-Carrier Cabinets)
Administering Fiber Links
Additional fields appear on the Fiber Link Administration Screen to allow administration of fiber links on the B-PNC side of the CSS. If an endpoint on the A-PNC side is administered as an SNI, its corresponding endpoint on the B-PNC side is determined (if switch nodes are paired in the cabinet form prior to this administration) and displayed. However, administration of the duplicate B-PNC link is not enforced until duplication is in full operation.
The following fields appear for basic fiber link administration:
- Fiber Link # -- Display-only field. From the command line, enter a 1- to 3-digit number to uniquely identify a switch connection in the system and its duplicate if appropriate.
- Board Location -- Enter the cabinet, carrier, and slot that identifies the physical location of an SNI or EI board that is the first endpoint of the fiber link.
- Board Type -- Display-only field showing the type of circuit pack in Endpoint-1.
- Board Location -- Enter the cabinet, carrier, and slot that identifies the physical location of an SNI or EI board that is the second endpoint of the fiber link.
- Board Type -- Display-only field showing the type of circuit pack in Endpoint-2.
- Is one endpoint remoted via a DS1 Converter Complex? -- Enter y to specify that a DS1 Converter complex is used to remote one endpoint. If a y is entered, A-PNC DS1 Converter circuit pack Location must be administered on Page 1. A-PNC DS1 Converter circuit pack Type displays. A-PNC DS1 Converter (DS1CONV) Attributes must be administered on Page 2 of this form.

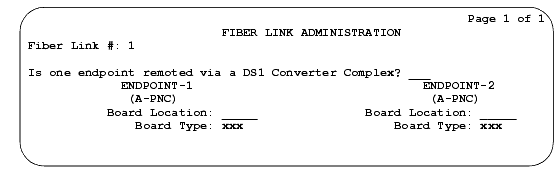

Fiber Link Administration Screen
|
|
|
|
|
|
|
|
|
|
