Web Application Search Screen

The Search screen displays upon user selection of the Directory application. At a minimum, two user text entry fields should be administered:

• Enter Name Here
• Enter Phone Number Here

Either field provides basic search criteria; up to four additional text entry fields may be administered.

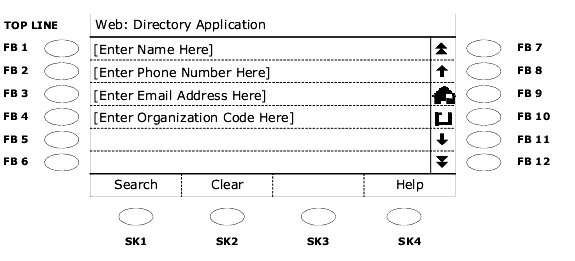

Figure D-2. Sample Search Screen

The three softkeys at the bottom of the screen function as follows:

• Search - Sends user input to the Directory application to initiate a search.
• Clear - Discards user input.
• Help - Retrieves a Help page specific to the Search screen.

Search responses take one of two forms. A successful search (one returning at least one telephone number when a Name was provided as search criteria) displays the Successful Search screen. This screen offers options to call the number found, add it to a Speed Dial button or review more detail. An unsuccessful search (no name found, error report(s) and/or unintelligible responses) displays the Directory Trouble screen.
