Web Application Successful Search Screen

The Successful Search screen displays when at least one match results from a user-submitted search. The top display line provides the message X found. Select choice. (where X = the number of matches found) or the message More results - please try again and refine search. (to indicate more than 96 matches were found). The display area for this screen provides the name and phone number of up to 96 matches found by the search. The user scrolls through the matches using the web browser navigation key to move forward one page, and selects an entry by pressing the Feature button to the left of the entry.

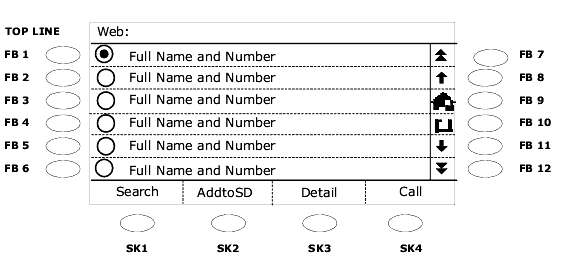

Figure D-3. Sample Successful Search Screen

The four softkeys across the bottom of the display function as follows:

• Search - Displays the Search screen, to allow the user to enter new criteria and initiate another search.
• Add to SD - Allows the user to add a selected name and phone number to a Speed Dial button.
• Detail - Displays more directory information on the person selected, such as a department, secondary contact, manager, etc. (as administered). See Figure D-4 for a sample Detail screen.
• Call - Allows the user to initiate a call to a person listed.
