Configuring the Directory Application Search Administration Screen

The Search screen’s administration requires you to provide labels for the LDAP attributes that appear on the user interface Search screen; these are the labeled search fields the end user sees when the Search screen displays.

Any Customer-Defined Label you create populates the Label value of the Enter Label Here text entry box on the Search Administration screen. This label also displays as the text entry prompt on the user interface Search screen. See Figure D-2 for an illustration of the user interface Search screen

1. From the Welcome screen, select the Search Administration screen link (or select the Right Arrow icon at the bottom of the General Administration screen).

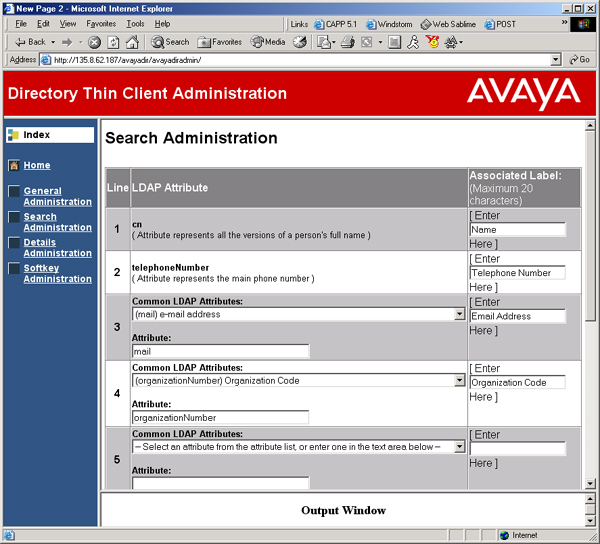

Figure D-8. Search Administration Screen

2. Enter the search fields, corresponding LDAP attribute names, and associated labels by which your 4620 end users will search your corporate Directory. The Search Administration screen contains the fields shown in Table D-3.

   Table D-3. Search Administration Screen Fields

   Search Screen Line #	Search Field/Search Object	LDAP Attribute Name	Associated (Customer-Defined) Label (20 characters maximum)
   1	Name (fixed)	cn	Customer administrable.
   2	Main Phone Number (fixed)	phoneNumber	Customer administrable.
   3	Email (default)	mail	Customer administrable.
   4	Customer administrable	Customer administrable	Customer administrable.
   5	Customer administrable	Customer administrable	Customer administrable.
   6	Customer administrable	Customer administrable	Customer administrable.

Example: Line 3 above shows a search field “Email” with the LDAP attribute “mail.” If you enter the Associated Label (column 4) as “Email Address” the 4620 users’ Search screen third line prompts them to “Enter Email Address Here”.

You can populate fields with well-known LDAP attributes from an Avaya-provided drop-down list. Table D-4 provides a list of allowable attributes you can use to label such fields.
