Configuring the Directory Application Details Administration Screen

The Detail screen’s administration requires you to provide the LDAP attributes that will appear on the user interface Details screen; these are the details the end user sees about a selected person when the Details screen displays.

1. From the Welcome screen, select the Details Administration screen link (or select the Right Arrow icon at the bottom of the Search Administration screen).

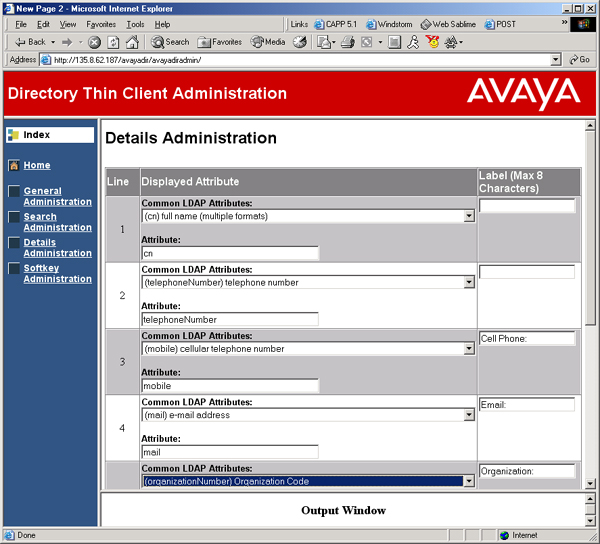

Figure D-9. Details Administration Screen

2. Enter the LDAP attribute names representing the detail information you want to display about a person found by a search. These entries appear to your 4620 end users on the user interface Detail screen, as illustrated in Web Application Detail Screen.

   NOTE:

   It is assumed that a minimum of name and telephone number will be shown as detail information, but you can change these defaults and provide different attributes, if desired. To override an attribute that does not appear in a drop-down list, change the Use Other radio box next to the appropriate Displayed Attribute from “Yes” to “No” then enter the custom attribute in the Other text entry field. Labels are not required because the detail attribute should be unique enough for end user identification. If you feel the attribute does not provide a sufficient description, you may include a label of up to 8 or less characters, with the understanding that the number of characters in the text display area will be reduced accordingly.

You can populate LDAP attributes from an Avaya-provided drop-down list. Table D-4 provides a list of allowable attributes you can use to label such fields.
