Connecting a UPS and an EBM (back view)

Message Networking Help

Home | Search
Print | Back | Fwd | Close

Home > Installation > Installing the system hardware > Installing the UPS and optional EBMs > Connecting a UPS and an EBM (back view)

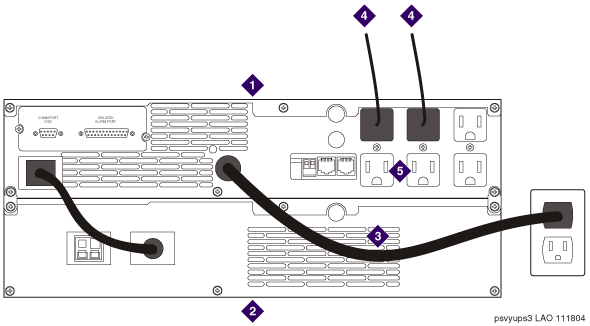

Connecting a UPS and an EBM (S3400-H only)

1	UPS (model might vary; see the provided documentation for details)
2	EBM (optional)
3	EBM battery cable to UPS
4	AC power connectors to the server (second connector used for redundant power supply if a stacked power supply is present)
5	UPS power cable to a grounded AC power outlet
