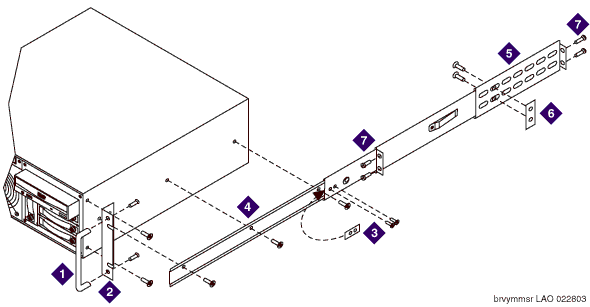

Mounting hardware for a rack-mounted S3400-H
1
Handles
2
Mounting bracket
3
Retaining bar
4
Rail side
5
Extension bracket
6
Retaining bar
7
Mounting hardware to secure the extension bracket
