The front LED panel connection varies depending on the type of
motherboard that is installed:
- Nonintegrated video and LAN model
- Integrated video and LAN model

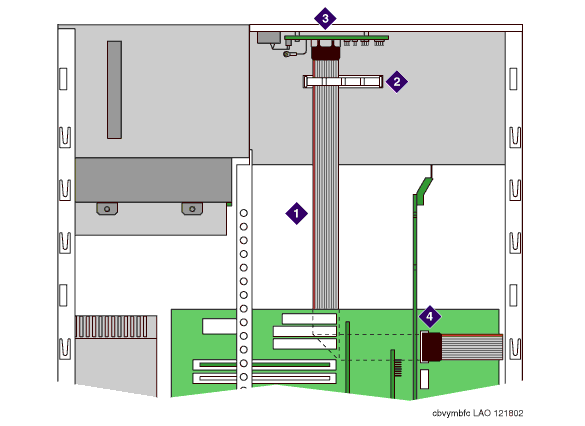

Nonintegrated video model
| 1 |
Motherboard
to LED panel cable |
| 2 |
Cable
tie-down strap |
| 3 |
J4 connector on the LED panel |
| 4 |
J8H1
Front Panel connector on the motherboard |

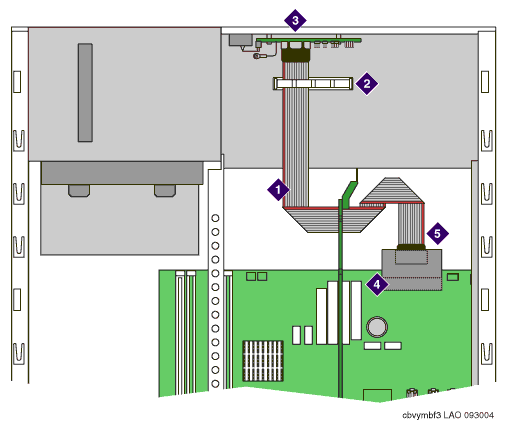

Integrated video and LAN model
| 1 |
Motherboard
to LED panel cable |
| 2 |
Cable
tie-down strap |
| 3 |
J4 connector on the LED panel |
| 4 |
Front
Panel connector on the motherboard |
| 5 |
Translator
board that connects to the LED panel cable |
