Replacing the S3400-H LED panel

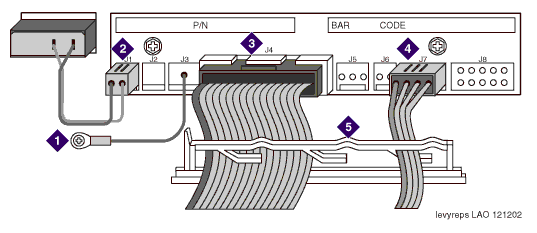

1 Ground connection
2 J1 cable to power switch
3 J4 ribbon cable to the motherboard
4 J7 RMB interface cable
5 Cable tie-down strap
