The interface cable connections are the same, regardless of the
type of motherboard that is installed. For clarity, both views are
shown:

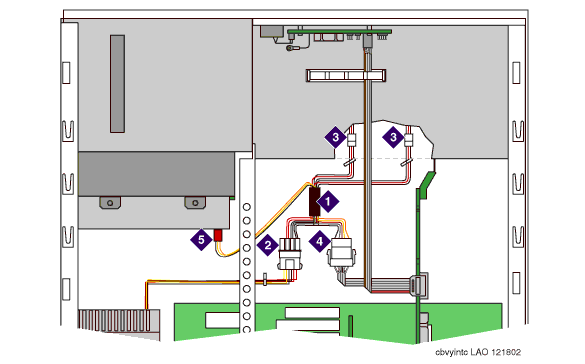

Nonintegrated video and LAN model
| 1 |
Interface
cable |
| 2 |
4-pin
power cable connector |
| 3 |
Two
3-pin connectors to the fans |
| 4 |
5-pin
fan monitor cable to the RMB |
| 5 |
3-pin J6 SCSI bay fan health indicator cable to the SCSI RAID
backplane |

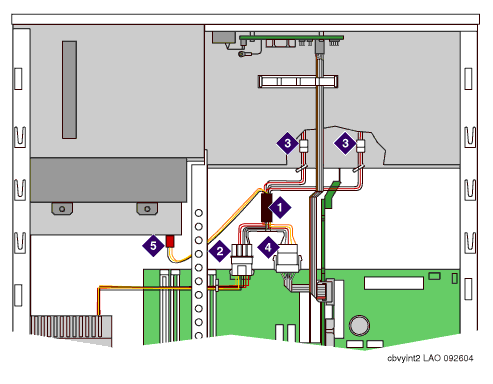

Integrated video and LAN model
| 1 |
Interface
cable |
| 2 |
4-pin
power cable connector |
| 3 |
Two
3-pin connectors to the fans |
| 4 |
5-pin
fan monitor cable to the RMB |
| 5 |
3-pin J6 SCSI bay fan health indicator cable to the SCSI RAID
backplane |
