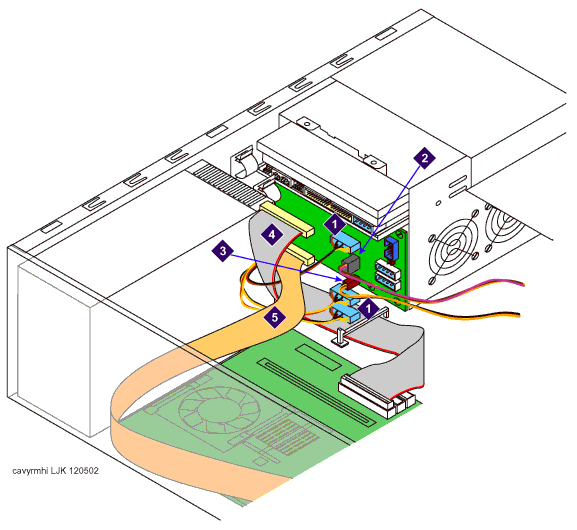

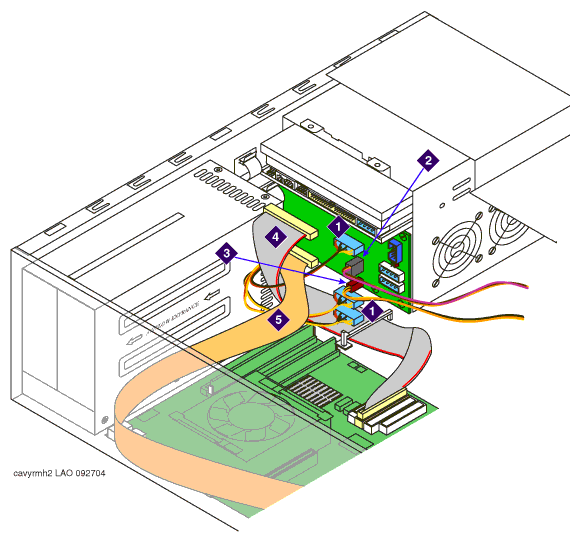

The location of the secondary IDE connector changes depending on
the type of motherboard that is installed:
| 1 |
Disk
drive power connectors |
| 2 |
J7
10-pin SCSI drive activity indicator cable |
| 3 |
J6
3-pin SCSI bay fan health indicator cable |
| 4 |
80-pin
IDE ribbon cable to the DVD drive and the secondary IDE connector
(SEC IDE) on the motherboard |
| 5 |
SCSI
ribbon cable to the SCSI RAID controller board |
