Replacing the motherboard to LED panel ribbon cable

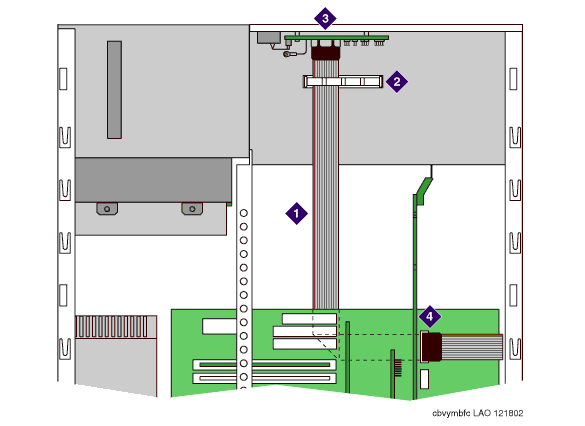

1 Motherboard to LED panel flat ribbon cable
2 Tie-down strap
3 J4 connector on the LED panel
4 J8H1 Front Panel connector
