Replacing the LED panel (MAS or MSS-S)

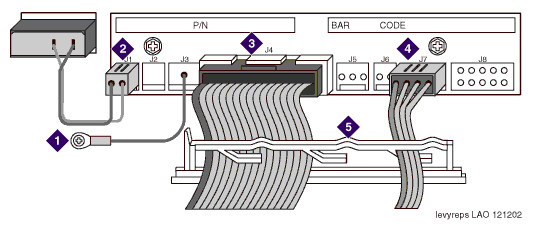

1 Ground connection
2 J1 cable to power switch
3 J4 ribbon cable to the motherboard
4 J7 RMB interface cable (MSS-S and MSS-H only)
5 Cable tie-down strap
