Replacing the LED panel (MSS-H)

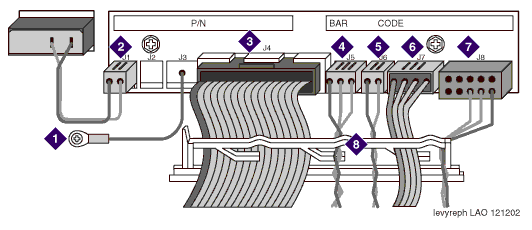

1 Ground connection
2 J1 cable to power switch
3 J4 ribbon cable to the motherboard
4 J5 power supply fail cable
5 J6 power supply health and reset cable
6 J7 RMB interface cable (MSS-S and MSS-H only)
7 J8 SCSI drive activity indicator cable
8 Cable tie-down strap
