Replacing the interface cable

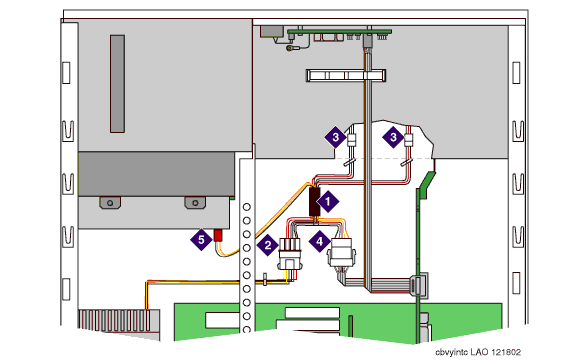

1 Interface cable
2 4-pin power cable connector
3 Two 3-pin connectors to the fans
4 5-pin fan monitor cable to the RMB
5 3-pin J6 SCSI bay fan health indicator cable to the SCSI RAID backplane
