Replacing the RMB ribbon cable (MSS only)

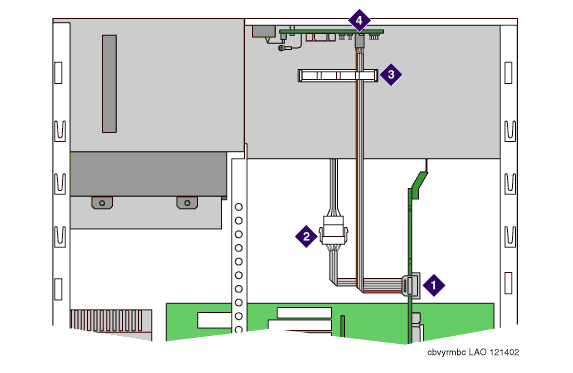

1	10-pin connector on RMB board
2	5-pin fan monitor cable connector
3	Tie-down strap
4	J7 connector on the LED panel
