Removing and replacing the circuit card hold-down bracket

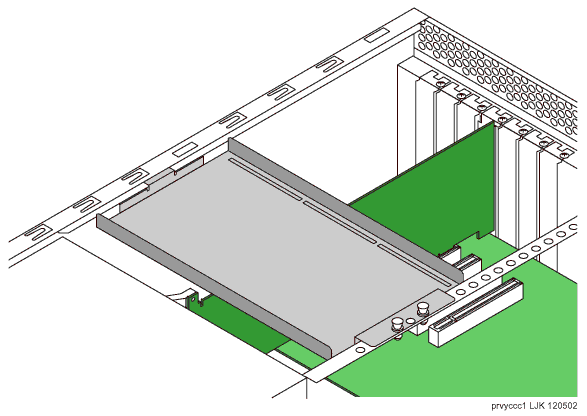

Circuit card hold-down bracket seated

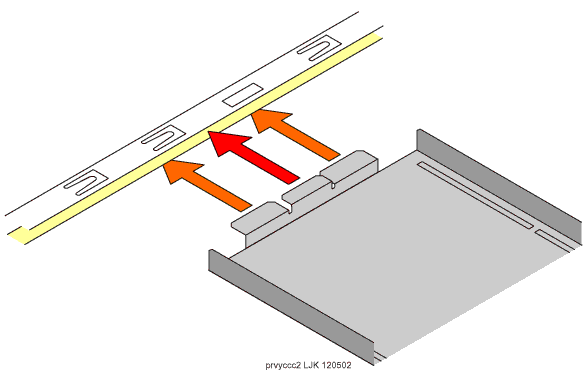

Hooking the circuit card hold-down bracket on the rail

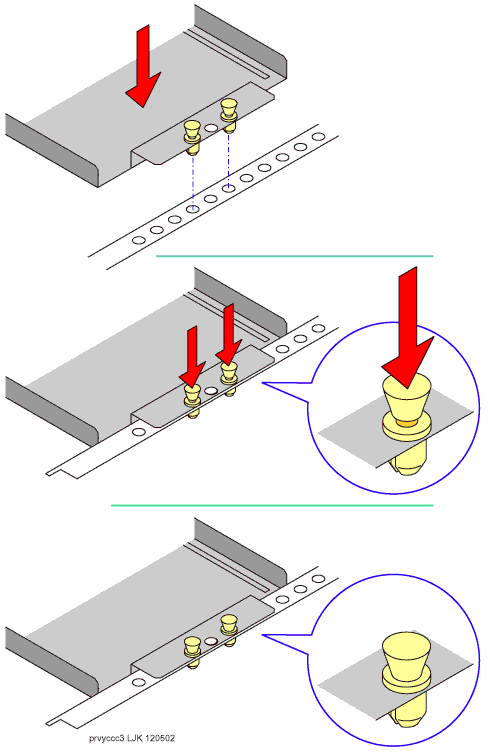

Locking down the pushbutton fasteners

1. Hook the hold-down bracket onto the rail.
2. Push down on the bracket to seat it.
3. Push down on the fasteners.
