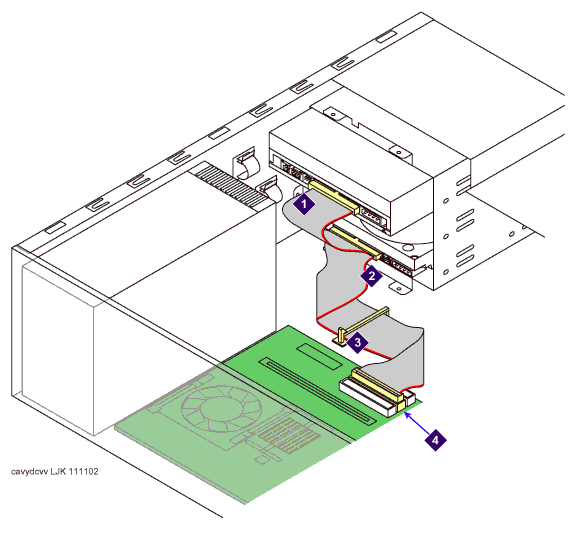

Replacing an IDE ribbon cable



1 Connector to DVD drive
2 Connector to hard disk drive (hda)
3 Disk drive ribbon cable tie-down strap
4 Primary IDE connector
