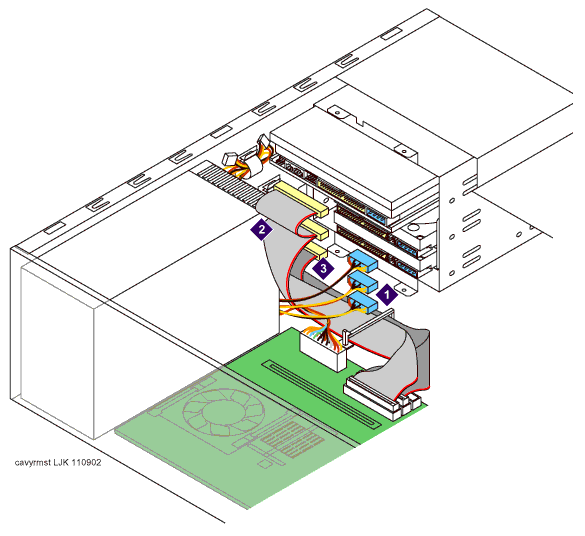

MSS-S drive cage cabling

1 Disk drive and DVD-RAM drive power connectors
2 80-pin IDE ribbon cable to the DVD and upper drive (hdc) and secondary IDE connector on the motherboard
3 80-pin IDE ribbon cable to the lower hard drive (hda) and primary IDE connector on the motherboard
