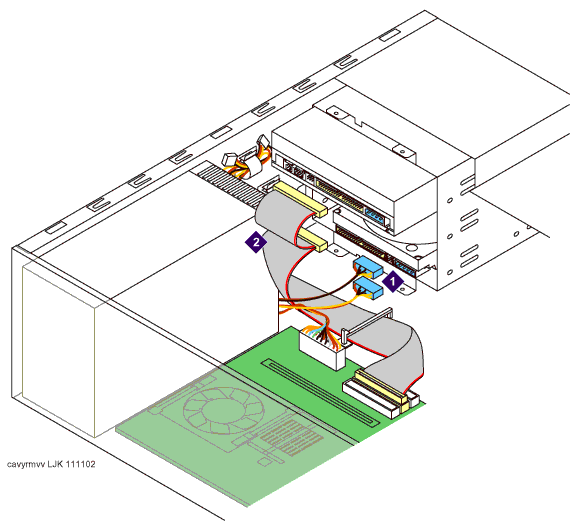

MAS drive cage cabling

1	Disk drive and DVD player power connectors
2	80-pin IDE ribbon cable to the DVD and hard drive (hda), and the primary IDE connector on the motherboard
