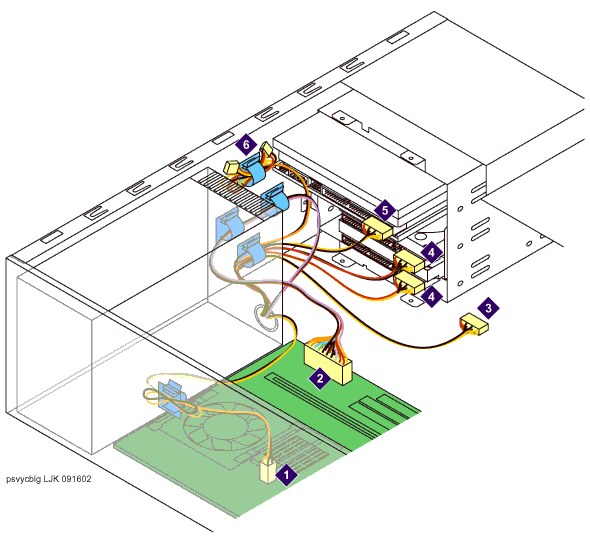

Power supply cable connections

1
 4-pin ATX 12 V power connector to the motherboard
2
 main power connector to the motherboard
3
 4-pin power connector leading to the fan assembly
4
 4-pin power connector to the disk drives (the MAS has drive hda only)
5
 4-pin power connector to the DVD drive
6
 dress clip for any unused power connectors
