The RMB ribbon cable connections are the same, regardless of the
type of motherboard that is installed. For clarity, both views are
shown:

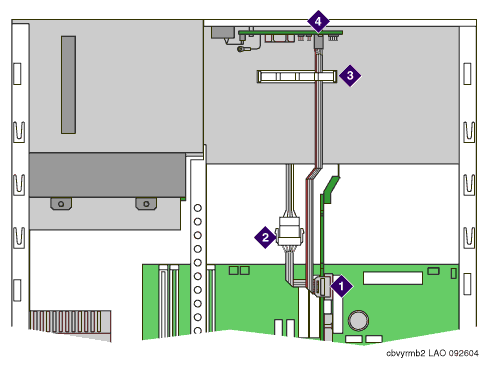

Nonintegrated video and LAN model
| 1 |
10-pin connector on RMB board |
| 2 |
5-pin fan monitor cable connector |
| 3 |
Cable tie-down strap |
| 4 |
J7 connector on the LED panel |

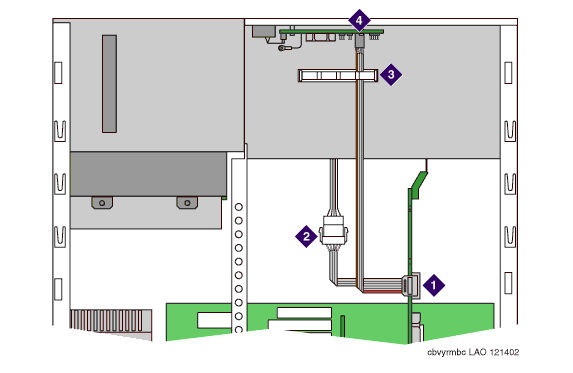

Integrated video and LAN model
| 1 |
10-pin connector on RMB board |
| 2 |
5-pin fan monitor cable connector |
| 3 |
Cable tie-down strap |
| 4 |
J7 connector on the LED panel |
